Fixed Focal Length Lenses 29MP 0.59kg Focal Length 50mm 180~∞ WD F2.8-F32
Price:
Negotiable
MOQ:
1 piece
Delivery Time:
7 work days at the soonest
Brand:
OPT
Product Description
Fixed Focal Length Lenses 29MP 0.59kg Focal Length 50mm 180~∞ WD F2.8-F32 OPT-F5028-29M
Product Features
◆ 29MP fixed focal length lenses aperture F/#: F2.8-F32
◆ The working distance of the OPT-F5028-29M is 180~∞mm
◆ Wiht high resolution optical design and its resolution up to 90lp/mm
◆ Relative distortion is below 0.2%
◆ Suitable for image circle of 36mmX24mm and under of sensor
◆ Relative distortion is below 0.2%
◆ Suitable for image circle of 36mmX24mm and under of sensor
◆ Filter thread (mm): M58*P0.75
◆ Focal length of 29MP fixed focal length lenses OPT-F5028-29M is 50mm.
◆ Back focal length (mm): 36.1mm
◆ Weight of OPT-F5028-29M fixed focal length lens is 0.59kg.
◆ Sensor format is 44mm | 4/3″ | 1″
◆ FOV angle(H×V×D): 38.78°| 20.41°| 14.59°, 29.58°| 15.38°| 10.97°, 47.50°| 25.36°| 18.18°
Model Explanation
OPT-F5028-29M
OPT: Brand name
F: F-Mount
50: Focal length: 50mm
28: F#: 2.8
29M: 29M pixel
Specifications
| Product Name | Fixed Focal Length Lenses |
|---|---|
| Model | OPT-F5028-29M |
| Focal Length | 50mm |
| Aperture range | F2.8-F32 |
| WD(mm) | 180~∞ |
| Filter thread | M58*P0.75mm |
| Distortion(%) | less than 0.2% |
| Back focal length (mm) | 36.1 |
| Weight(kg) | 0.59kg |
| Sensor format | 44mm | 4/3″ | 1″ |
| FOV angle(H×V×D) |
38.78°| 20.41°| 14.59°
29.58°| 15.38°| 10.97°
47.50°| 25.36°| 18.18°
|
Resolution Comparison

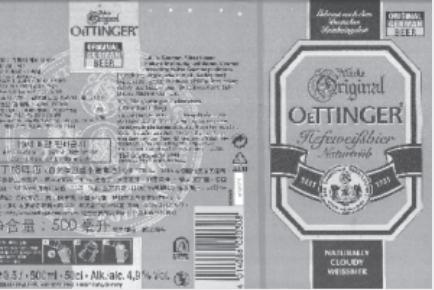

Image taken by 29MP fixed focal length lens Image taken by other lens
Application Examples:
Application Examples:
OCR(Optical Character Recognition) for plastic parts
Dimensions (mm)
| OPT-F5028-29M | |
|
|
