151M Series Fixed Focal Length Lenses Focal Length 60mm 250-∞ WD F5.0-F32 0.66kg
151M Series Fixed Focal Length Lenses Focal Length 60mm 250-∞ WD F5.0-F32 0.66kg OPT-M6050-151M
◆ Suitable for image circle of 67mm sensor

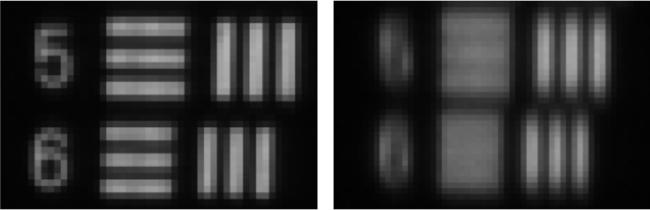

◆ The resolution of 151M fixed focal length lens is 3.76µm.
◆ Optical distortion: less than 0.68% at working distance of 250mm; less than 0.34% at working distance of 400mm; less than 0.57% at working distance of 1000mm.
◆ Details of magnification(x): 0.232X at working distance of 250mm; 0.147X at working distance of 400mm; 0.060X at working distance of 1000mm.
◆ Flange focal distance of 151M fixed focal length lens OPT-M6050-151M is 19.55mm.
| Product Name | 151M Series Fixed Focal Length Lenses |
|---|---|
| Model | OPT-M6050-151M |
| Focal Length | 60mm |
| Aperture range | F5.0-F32 |
| WD(mm) | 250~∞ |
| Filter thread | M72 x P0.75 |
| Distortion(%) |
less than 0.68% at working distance of 250mm less than 0.34% at working distance of 400mm less than 0.57% at working distance of 1000mm |
| Back focal length (mm) | 52.53mm |
| Weight(kg) | 0.66kg |
| Image circle Ø (mm) | 67mm |
| Resolution (µm) |
3.76µm
|
| Flange focal distance | 19.55mm |
| Magnification(x) |
0.232X at working distance of 250mm 0.147X at working distance of 400mm 0.060X at working distance of 1000mm |
| Coating band | 400-1000nm |
| Max. optical distortion | less than 0.7% |
| Sensor size | Ø67mm |
Application Examples:
FPC positioning cutting PCB defects detection Lithium battery pole piece Panel defects detection| OPT-M6050-151M | |
|
|
