F2.8-16 0.14kg 35mm Camera Lens Machine Vision Hardware WD 200mm-∞ 20M Series
Price:
Negotiable
MOQ:
1 piece
Delivery Time:
7 work days at the soonest
Brand:
OPT
Product Description
WD 200-∞ Focal Length 35mm Dolphin 20M Series Fixed Focal Length Lenses F2.8-16 0.14kg OPT-CDP3528
Product Features
◆ The F/# aperture is F2.8-F16.
◆ It was designed with 208 lp/mm high resolution and suitable for cameras of ≥2.4μm pixel size and ≤1.1" (Ø17.6mm) sensor format.
◆ Spectrum range is wide : compatible with VIS and NIR (400 - 1000nm).
◆ The TV distortion <0.2% (The TV distortion of OPT-CDP1228 <0.85%@WD300, OPT-CDP1628 <0.41%@WD300.)
◆ Featured with high relative illumination: CRA Below 5°, this guarantees a high relative illumination across the entire image without vignetting.
◆ The OPT-CDP3528 working distance is 200-∞.
◆ The diameter of image circle is 17.6mm.
◆ The diameter of image circle is 17.6mm.
◆ Filter thread: M32.5*P0.5.
◆ OPT-CDP3528 dolphin 20M series fixed focal length lenses focal length is 35mm.
◆ Back focal length (mm): back focal length is 13.44mm.
◆ Weight of OPT-CDP3528 fixed focal length lens is 0.14kg.
◆ The dolphin series fixed focal length lenses' resolution is 2.4µm.
◆ TV distortion is less than 0.15% at working distance of 300mm.
◆ Magnification at MOD is 0.176X at working distance of 200mm.
◆ The chief ray angle is less than 4.85°.
Model Explanation
OPT-CDP3528
OPT: Brand name
C: C-Mount
DP: Dolphin series fixed focal length lenses
35: Focal length: 35mm
28: F#: 2.8
Specifications
| Product Name | 20M Dolphin Series Fixed Focal Length Lenses |
|---|---|
| Model | OPT-CDP3528 |
| Focal Length | 35mm |
| Aperture range | F2.8-F16 |
| Working Distance(mm) | 200-∞ |
| TV Distortion(%) |
Less than 0.15% at working distance of 300mm |
| Back focal length (mm) |
13.44mm |
| Weight(kg) | 0.14kg |
| Image circle Ø (mm) | 17.6mm |
| Resolution (µm) |
2.4µm
|
| Chief Ray Angle | <4.85° |
| Magnification(x) at MOD |
0.176X at working distance of 200mm |
Resolution Comparison
Image taken via CDP lens Image taken via other lens
Application Examples:
Application Examples:

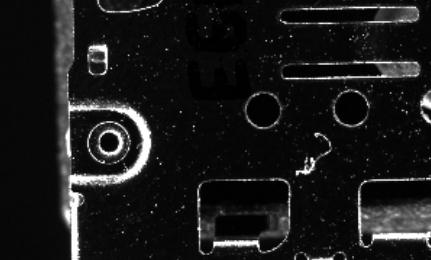

Shielding cover hole positioning detection
Dimensions (mm)
| OPT-CDP3528 | |
|
|
