10MP Fixed Focal Length Lenses 16mm Camera Lens 30.7degree FOV Angle
Price:
Negotiable
MOQ:
1 piece
Delivery Time:
7 work days at the soonest
Brand:
OPT
Product Description
10MP Fixed Focal Length Lenses F1.6-F16 WD 100~∞ Focal Length 16mm 0.19kg OPT-C1616-10M
Product Features
◆ The F/# aperture is F1.6-F16.
◆ With high resolution; compatible with most 10MP industrial cameras, 12MP cameras [1] of ≥ 3.45μm pixel size and max. 1.1" sensor.(OPT-C0824-10M/OPT-C1220-10M/OPT-C1616-10M: Max compatible with 1" sensor)
◆ With low distortion; total distortion < 0.8%, minimum distortion as low as 0.1%.
◆ With floating focus design: it can gain high quality images at different distances.(OPT-C5024-10M & OPT-C7528-10M are not included.)
◆ The OPT-C1616-10M working distance is 100mm-∞.
◆ Filter thread: M37.5*P0.5.
◆ OPT-C1616-10M fixed focal length lenses focal length is 16mm.
◆ Back focal length (mm): back focal length is 10.7mm.
◆ Weight of OPT-C1616-10M fixed focal length lens is 0.19kg.
◆ The sensor format of 10MP fixed focal length lenses is 2/3″ | 1″.
◆ The distortion is less than 0.68%.
◆ FOV angle (H×V×D) is 30.7°| 43.60°, 23.2°| 33.40°, 38.4° | 53.13 °.
Model Explanation
OPT-C1616-10M
OPT: Brand name
C: C-Mount
16: Focal length: 16mm
16: F#: 1.6
10MP: 10M pixel
Specifications
| Product Name | 10MP Fixed Focal Length Lenses |
|---|---|
| Model |
OPT-C1616-10M
|
| Focal Length | 16mm |
| Aperture range | F1.6-F16 |
| Working Distance(mm) | 100-∞ |
|
Filter thread(mm)
|
M37.5*P0.5
|
| Distortion(%) |
Less than 0.68% |
| Back focal length (mm) |
10.7mm |
| Weight(kg) | 0.19kg |
|
Sensor format
|
2/3″
1″
|
|
FOV angle
(H×V×D)
|
30.7°| 43.60° 23.2°| 33.40° 38.4° | 53.13° |

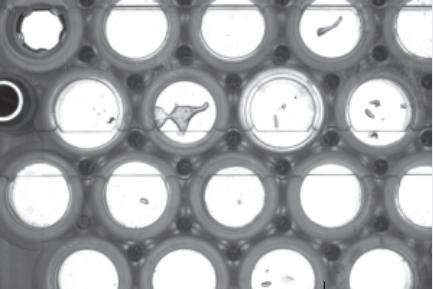

Resolution Comparison
Image taken via 10MP Fixed Focal Length Lens Image taken via other lens
Application Examples:
Application Examples:
Inspection for glue on battery surface
Dimensions (mm)
Dimensions (mm)
OPT-C1616-10M
|
|
