F1.4~F16 2MP 0.07kg 8mm Camera Lens Machine Vision Hardware WD 100-∞
Price:
Negotiable
MOQ:
1 piece
Delivery Time:
7 work days at the soonest
Brand:
OPT
Product Description
F1.4~F16 2MP Fixed Focal Length Lenses Focal Length 8mm WD 100-∞ 0.07kg OPT-C0814-2M
Product Features
◆ The F/# aperture is F1.4~F16.
◆ Be designed to be compact, light weight and stable
◆ High resolution: compatible with 2MP industrial cameras of pixel size no less than 5.5μm and max. 2/3" sensor (OPT-C0420-2M & OPT-C0620-2M: Max compatible with 1/2")
◆ The OPT-C0814-2M working distance(mm) is 100-∞.
◆ Filter thread of OPT-C0814-2M: M27*P0.5.
◆ OPT-C0814-2M fixed focal length lenses focal length is 8mm.
◆ Back focal length (mm): back focal length is 8.95mm.
◆ Weight of OPT-C0814-2M fixed focal length lens is 0.07kg.
◆ OPT-C0814-2M sensor format is 1/3″ | 1/2.5″ | 1/1.8″ | 2/3″.
◆ The distortion is less than 2.4%.
◆ FOV angle (H×V×D) is 33.8° | 38.3° | 47.5° | 55.4°, 24.7° | 29.0° | 36.9° | 47.1°, 41.0° | 46.8° | 57.8° | 68.6°.
Model Explanation
OPT-C0814-2M
OPT: Brand name
C: C-Mount
08: Focal length: 8mm
14: F#: 1.4
2M: 2M pixel
Specifications
| Product Name | 2MP Fixed Focal Length Lenses |
|---|---|
| Model |
OPT-C0814-2M
|
| Focal Length | 8mm |
| Aperture range | F1.4~F16 |
| Working Distance(mm) | 100-∞ |
|
Filter thread(mm)
|
M27*P0.5
|
| Distortion(%) |
Less than 2.4% |
| Back focal length (mm) |
8.95mm |
| Weight(kg) | 0.07kg |
|
Sensor format
|
1/3″ | 1/2.5″ | 1/1.8″ | 2/3″
|
|
FOV angle
(H×V×D)
|
33.8° | 38.3° | 47.5° | 55.4° 24.7° | 29.0° | 36.9° | 47.1° 41.0° | 46.8° | 57.8° | 68.6° |
Resolution Comparison

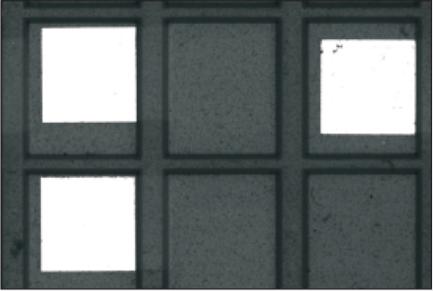

Image taken via 2MP Fixed Focal Length Lens Image taken via other lens
Application Examples:
Application Examples:
Lenses on plate detection
Dimensions (mm)
Dimensions (mm)
OPT-C0814-2M
|
|
