F8-F22 Machine Vision Zoom Lens long WD 108mm±3% C Mount Zoom Lens
Machine Vision Zoom Telecentric Lens WD 108mm±3% C Mount F8-22 OPT-CZT0510X
◆ The sensor format of OPT-CZT0510X: 1/3″ | 1/2.5″ | 1/1.8″ | 2/3″.
◆ FOV angle (H×V×D) is 2.0° | 2.4° | 3.0° | 3.7°, 1.5° | 1.8° | 2.3° | 2.8°, 2.5° | 3.0° | 3.7° | 4.6°.
◆ Total distortion is less than 0.1%. Distortion at 546nm is less than 0.05%.
FOV angle (mm×mm) of 1/1.8″ | 7.18×5.32: 14.36×10.64 |11.97×8.87 | 10.26×7.6 | 8.98×6.65 | 7.98×5.91 | 7.18×5.32.
FOV angle (mm×mm) of 1/2″ | 6.4×4.8: 12.8×9.6 | 10.67×8 | 9.14×6.86 | 8×6 | 7.11×5.33 | 6.4×4.8.
| Product Name | Machine Vision Zoom Telecentric Lens |
|---|---|
| Model |
OPT-CZT0510X
|
| Aperture range | F8-22 |
| Magnification | 0.5X | 0.6X | 0.7X | 0.8X | 0.9X | 1.0X |
| Working Distance(mm) | 108mm±3% |
| Distortion @546nm |
Less than 0.05% |
| Telecentricity |
<0.05° | <0.04° | <0.05° | <0.03° | <0.02° | <0.05° |
| MTF 70lp/mm | >40% | >40% | >40% | >30% | >30% | >25% |
| Mount | C |
|
FOV angle (mm×mm) of 1/1.2″ | 10.72×8.04 |
21.44×16.08 |17.87×13.4 | 15.31×11.49 13.4×10.05 | 11.91×8.93 | 10.72×8.04 |
|
FOV angle (mm×mm) of 2/3″ | 8.8×6.6 |
17.6×13.2 |14.67×11 | 12.57×9.43 11×8.25 | 9.78×7.33 | 8.8×6.6 |
|
FOV angle (mm×mm) of 1/1.8″ | 7.18×5.32 |
14.36×10.64 |11.97×8.87 | 10.26×7.6 8.98×6.65 | 7.98×5.91 | 7.18×5.32 |
|
FOV angle (mm×mm) of 1/2″ | 6.4×4.8 |
12.8×9.6 | 10.67×8 | 9.14×6.86 8×6 | 7.11×5.33 | 6.4×4.8 |

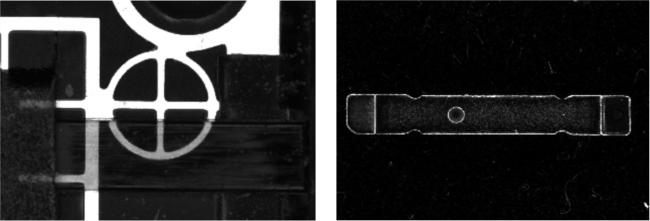

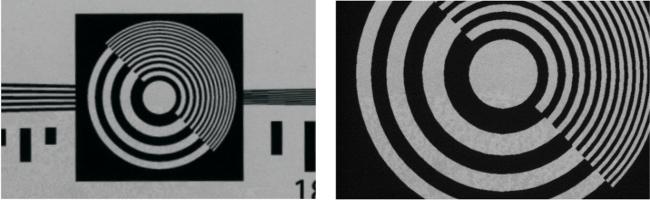

Application Examples:
|
|
OPT lenses include 29MP/10MP/5MP/2MP/Cobra series fixed focal length lenses, zoom lenses, high accuracy line scan lenses, high resolution telecentric lenses, etc.
OPT machine vision light sources consist of 39 standard series including nearly 1000 standard models and customized series with over 30000 customized designs and solutions. OPT can deliver a custom light as fast as in 3 working days.
