24V/7.2W 24V/10.5W Coaxial Lighting For Recognition Of Laser Marked Characters
Price:
Negotiable
MOQ:
1 piece
Delivery Time:
7 work days at the soonest
Brand:
OPT
Product Description
DOAL Coaxial Light Source 24V/7.2W 24V/10.5W For Recognition Of Laser-Marked Characters OPT-CO70
Product Features
◆ DOAL coaxial light source long WD LED arrays OPT-CO70 has excellent directional emitting light which is suitable for long work distance application and able to enhance the image feature.
◆ The high density LED arrays and special heat dissipation designs of DOAL coaxial light source OPT-CO70 ensure the illumination intensity and long lifespan.
◆ OPT-CO70 is featured to be against highly reflected surface and able to highlight the surface uneveness.
◆ DOAL coaxial light source OPT-CO70 has four colours of white, red, blue, green with 1 channel to connect with lighting controller OPT-DPA2024E.
◆ The housing size(length) and emitting window size(length) of coaxial light source OPT-CO70 are respectively 114mm and 62mm.
◆ The output power of OPT-CO70: White: 24V/10.5W; Red: 24V/7.2W; Blue: 24V/10.5W; Green: 24V/10.5W
◆ OPT-CO70 is able to be customized in many aspects such as colors, connector, mounting, uniformity and intensity.
◆ DOAL coaxial light source OPT-CO70 is able to be applied to different applications such as detecting of scratches of highly reflective surface, silicon wafer detecting and 2D barcode reading.
Application Cases
◆ Detecting of scratches of highly reflective surface
◆ Silicon wafer detecting
◆ Silicon wafer detecting
◆ 2D barcode reading
Model Explanation
OPT-CO70
OPT: Brand name
CO: DOAL coaxial light source
70: Width of OPT-CO70 coaxial light source
Specifications
| Model | OPT-CO70 |
|---|---|
| Color | White/Green/ Blue/Red |
| Output | W: 24V/10.5W R: 24V/7.2W B: 24V/10.5W G: 24V/10.5W |
| Channel | 1 |
| Housing Size(Length) | 114mm |
| Emitting Window(Length) | 62mm |
| Application 1 | Detecting of scratches of highly reflective surface |
| Application 2 | Silicon wafer detecting |
| Application 3 | 2D barcode reading |

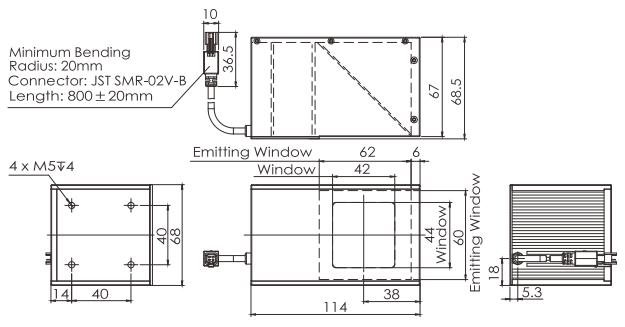

Dimensions (mm)
| OPT-CO70 | |
 |
Applications of OPT-CO70: Defects detection of reflective glass surface
