KC CB IEC62133 Li Polymer Rechargeable Battery High Capacity Lipo Battery 1160100 3.7V 9000mAh
Price:
Negotiable
MOQ:
2000pieces
Delivery Time:
within 15days
Product Description
1160100 3.7V 9Ah Rechargeable Lithium ion Polymer Battery Pack
Advantages:
1> Low self-discharge
2>Long cycle life
3>Dual IC chips, that can anti-shortcircuit, anti-overcharger, anti-overcurrent, anti-overload
4>dimension and capacity can be customed according to your requirement.
5>with qulity warranty
6>applied to tablet pc,laptop,electronical tools and so on
7> KC/CE/ROSH/SGS/MSDS/UN38.3 standard
8> super low internal resistance and fast charging
1> Low self-discharge
2>Long cycle life
3>Dual IC chips, that can anti-shortcircuit, anti-overcharger, anti-overcurrent, anti-overload
4>dimension and capacity can be customed according to your requirement.
5>with qulity warranty
6>applied to tablet pc,laptop,electronical tools and so on
7> KC/CE/ROSH/SGS/MSDS/UN38.3 standard
8> super low internal resistance and fast charging
Product Description
|
Names
|
Specifications
|
|
Type
|
Lithium polymer battery
|
|
Nominal voltage
|
3.7V
|
|
Nominal Capacity
|
9000mAh
|
|
Dimension
|
11*60*100 mm
|
|
Mode
|
1160100
|
|
Max.charge current
|
1.0C
|
|
Max.discharge current
|
1.0C
|
|
Charge current
|
Standard Charging: 0.5C
Rapid charge: 1.0C |
|
Standard Charging method
|
0.5C CC(constant current)charge to 4.2V,
then CV(constant voltage 4.2V)charge till charge current decline to ≤0.05C |
|
Charging time
|
Standard Charging: 3.0 hours(Ref.)
Rapid charge: 2 hours(Ref.) |
|
Discharge cut-off voltage
|
2.45V~3.0V
|
|
Operating temperature
|
-20°C~+60 °C
|
|
Storage temperature
|
25°C
|
|
Weight
|
180g
|
Shenzhen Gold Power Energy have over 1000models lithium polymer batteries.
Capacity range from 20mAh to 5000mAh, can meet your different kinds of applications.
Following are some of hot-sale models for your reference.
| Model | Cell Dimension | With PCM Dimension | Capacity |
| 302025 | 3.0*20*25mm | 3.2*21*27.5mm | 3.7V 100mAh |
| 302530 | 3.0*25*30mm | 3.2*26*32.5mm | 3.7V 180mAh |
| 401824 | 4.0*18*24mm | 4.2*19*26.5mm | 3.7V 180mAh |
| 402525 | 4.0*25*25mm | 4.2*26*27.5mm | 3.7V 200mAh |
| 483450 | 4.8*34*50mm | 5.0*35*52.5mm | 3.7V 850mAh |
| 502030 | 5.0*20*30mm | 5.2*21*32.5mm | 3.7V 240mAh |
| 502525 | 5.0*25*25mm | 5.2*26*27.5mm | 3.7V 180mAh |
| 503030 | 5.0*30*30mm | 5.2*31*32.5mm | 3.7V 430mAh |
| 523450 | 5.2*34*50mm | 5.4*35*52.5mm | 3.7V 1000mAh |
| 553444 | 5.5*34*44mm | 5.7*35*46.5mm | 3.7V 850mAh |
| 553640 | 5.5*36*40mm | 5.7*37*42.5mm | 3.7V 850mAh |
| 553759 | 5.5*37*59mm | 5.7*38*61.5mm | 3.7V 1400mAh |
| 602030 | 6.0*20*30mm | 6.2*21*32.5mm | 3.7V 300mAh |
| 602240 | 6.0*22*40mm | 6.2*23*42.5mm | 3.7V 500mAh |
| 602535 | 6.0*25*35mm | 6.2*26*37.5mm | 3.7V 500mAh |
| 602663 | 6.0*26*63mm | 6.2*27*65.5mm | 3.7V 1000mAh |
| 603030 | 6.0*30*30mm | 6.2*31*32.5mm | 3.7V 520mAh |
| 603040 | 6.0*30*40mm | 6.2*31*42.5mm | 3.7V 750mAh |
| 603048 | 6.0*30*48mm | 6.2*31*50.5mm | 3.7V 900mAh |
| 603450 | 6.0*34*50mm | 6.2*35*52.5mm | 3.7v 1200mAh |
| 656090 | 6.5*60*90mm | 6.5*60*92.5mm | 3.7V 5000mAh |
| 702040 | 7.0*21*40mm | 7.2*22*42.5mm | 3.7V 500mAh |
| 753048 | 7.5*30*48mm | 7.7*31*50.5mm | 3.7V 1200mAh |
| 803035 | 8.0*30*35mm | 8.2*31*37.5mm | 3.7V 800mAh |
| 855465 | 8.5*54*65mm | 8.5*54*65mm | 3.7V 4000mAh |
| 863040 | 8.6*30*40mm | 8.8*30*42.5mm | 3.7V 1000mAh |
| 904060 | 9*40*60mm | 9.2*40*62.5mm | 3.7V 2500mAh |
| 883760 | 8.8*37*60mm | 9*57*51.6mm | 3.7V 2000mAh |
| 103048 | 10.2*30*48mm | 10.2*30*50.5mm | 3.7V 1500mAh |
| 103040 | 10.2*30*40mm | 10.2*30*42.5mm | 3.7V 1200mAh |
| 114261 | 11*42*61mm | 11*42*63.5mm | 3.7V 3400mAh |
| 122773 | 12*27*73mm | 12*27*75.5mm | 3.7V 2400mAh |

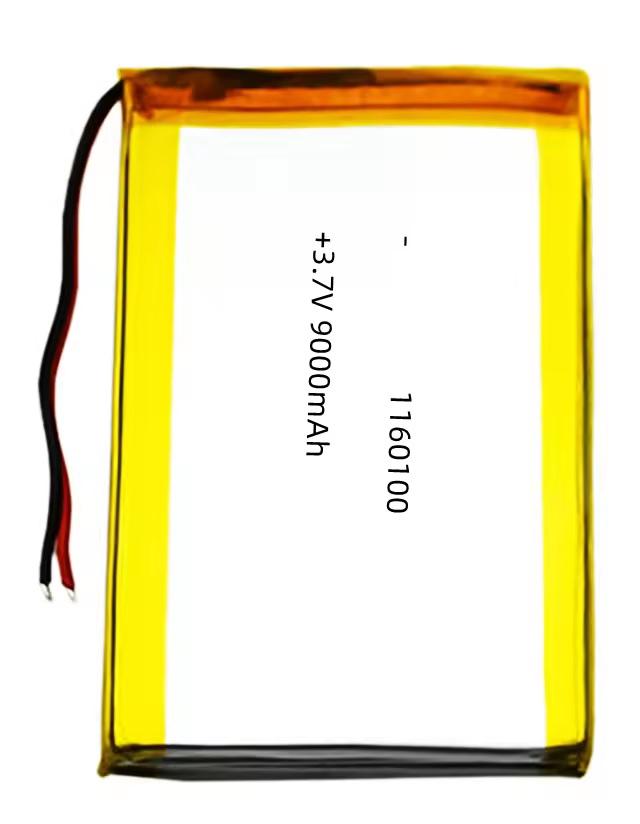

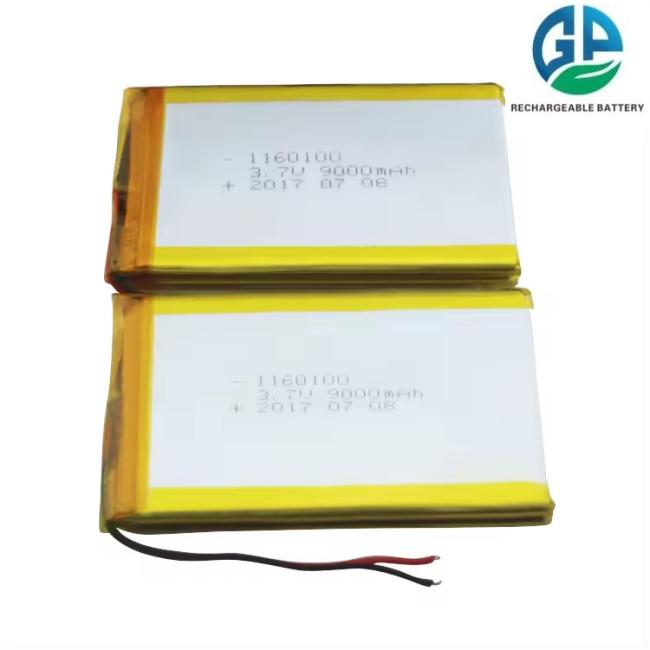

Images for Rechargeable li-Polymer battery 3.7V 9000mah lipo power bank battery
Standard packaging for 3.7V 7.4V lithium polymer battery pack
Why Choose us:
Technology
- All-weather applicability (-30~60℃)
- Highly safe battery design technology with the newest electrolyte and separator technology applie
- Full Coverage of Battery Variety: Lithium ion Cylindrical battery, lithium polymer battery, LiFePO4 battery, Solar Energy Storage battery pack, square aluminum shell, Primary Battery, etc.
R&D
Experienced R&D team with over 60 engineers and advanced equipments for supporting OEM and ODM requirements.
Certificates-CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.
Factory Tour:
Shenzhen Gold Power Eenergy Co.,Ltd is one of the leading battery suppliers in China.
We have started to offer various batteries including Li polymer battery, Lithium ion battery, LiFePO4 battery,
and customized battery pack since 2001.
