IEC62133 Approved 3.7V 630mAh Lithium Polymer Battery Pack Rechargeable LiPo Battery
Price:
Negotiable
MOQ:
2000pieces
Delivery Time:
within 15days
Brand:
GPE
Product Description

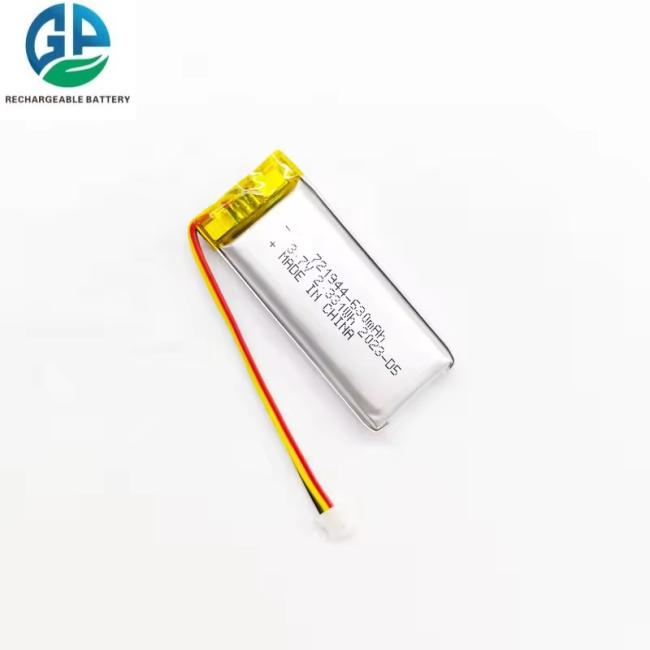

IEC62133 Approved Polymer Rechargeable Lipo 721944 630mAh 3.7V Lithium Battery
KC IEC62133 Lithium Polymer Battery Pack 721944 - 3.7V 630mAh LiPo
Important Safety Instructions:
• Do not submerge the battery in water
• Do not mix fresh batteries with used batteries
• Do not mix batteries with metal objects
• Do not insert batteries with (+) and (-) reversed
• Do not disassemble, dispose in fire, heat or short circuit
• Do not put the battery in a charger or equipment with wrong terminals connected
• Do not submerge the battery in water
• Do not mix fresh batteries with used batteries
• Do not mix batteries with metal objects
• Do not insert batteries with (+) and (-) reversed
• Do not disassemble, dispose in fire, heat or short circuit
• Do not put the battery in a charger or equipment with wrong terminals connected
Specifications
| Model | 721944 |
|---|---|
| Material | Lithium ion polymer battery |
| Normal Capacity (0.2C) | 630mAh |
| Minimum Capacity (0.2C) | 610mAh |
| Energy | 2.33Wh |
| Normal Voltage | 3.7V |
| Delivery Voltage | 3.7V ~ 3.9V |
| Standard Charge Method | 0.2C CC charge to 4.2V, then CV (constant voltage 4.2V) charge till charge current decline to ≤ 0.02C |
| Max Charging Current | 1C |
| Max Discharging Current | 1C |
| Over-Discharging Current | 3.0V |
| Ambient Temperature - Charging | 10℃ ~ 50℃ |
| Ambient Temperature - Discharging | -10℃ ~ 50℃ |
| Cell Exterior Temperature - Charging | 10℃ ~ 45℃ |
| Cell Exterior Temperature - Discharging | -10℃ ~ 50℃ |
| Storage Temperature | -10℃ ~ 45℃ (1 month ≥ 90%) -10℃ ~ 35℃ (3 months ≥ 85%) -10℃ ~ 25℃ (12 months ≥ 80%) |
| Cycle Life (at 15℃ ~ 35℃) | ≥ 300 times, more than 80% at 0.5C discharge |
| Pack Weight | Approx. 7.5g |
Applications
Lithium polymer battery packs are widely used in:
- GPS, POS Terminal, Wireless headset
- Communication Tools, Heating Blanket, Smart Phone
- Learning Tools, Medical Devices, Personal Care Scanner
- Vacuum Packaging, Lamps, Monitors
- Portable DVD, Smart Home, Tablet PC
- Pulse Monitoring, Mobile Devices, Power Banks, Cameras
Additional Battery Models
Shenzhen Gold Power Energy offers over 1000 models of lithium polymer batteries with capacities ranging from 20mAh to 5000mAh to meet various application requirements.
| Model | Cell Dimension | With PCM Dimension | Capacity |
|---|---|---|---|
| 302025 | 3.0*20*25mm | 3.2*21*27.5mm | 3.7V 100mAh |
| 302530 | 3.0*25*30mm | 3.2*26*32.5mm | 3.7V 180mAh |
| 401824 | 4.0*18*24mm | 4.2*19*26.5mm | 3.7V 180mAh |
| 402525 | 4.0*25*25mm | 4.2*26*27.5mm | 3.7V 200mAh |
| 483450 | 4.8*34*50mm | 5.0*35*52.5mm | 3.7V 850mAh |
| 502030 | 5.0*20*30mm | 5.2*21*32.5mm | 3.7V 240mAh |
| 502525 | 5.0*25*25mm | 5.2*26*27.5mm | 3.7V 180mAh |
| 503030 | 5.0*30*30mm | 5.2*31*32.5mm | 3.7V 430mAh |
| 523450 | 5.2*34*50mm | 5.4*35*52.5mm | 3.7V 1000mAh |
| 553444 | 5.5*34*44mm | 5.7*35*46.5mm | 3.7V 850mAh |
| 553640 | 5.5*36*40mm | 5.7*37*42.5mm | 3.7V 850mAh |
| 553759 | 5.5*37*59mm | 5.7*38*61.5mm | 3.7V 1400mAh |
| 602030 | 6.0*20*30mm | 6.2*21*32.5mm | 3.7V 300mAh |
| 602240 | 6.0*22*40mm | 6.2*23*42.5mm | 3.7V 500mAh |
| 602535 | 6.0*25*35mm | 6.2*26*37.5mm | 3.7V 500mAh |
| 602663 | 6.0*26*63mm | 6.2*27*65.5mm | 3.7V 1000mAh |
| 603030 | 6.0*30*30mm | 6.2*31*32.5mm | 3.7V 520mAh |
| 603040 | 6.0*30*40mm | 6.2*31*42.5mm | 3.7V 750mAh |
| 603048 | 6.0*30*48mm | 6.2*31*50.5mm | 3.7V 900mAh |
| 603450 | 6.0*34*50mm | 6.2*35*52.5mm | 3.7V 1200mAh |
| 656090 | 6.5*60*90mm | 6.5*60*92.5mm | 3.7V 5000mAh |
| 702040 | 7.0*21*40mm | 7.2*22*42.5mm | 3.7V 500mAh |
| 753048 | 7.5*30*48mm | 7.7*31*50.5mm | 3.7V 1200mAh |
| 803035 | 8.0*30*35mm | 8.2*31*37.5mm | 3.7V 800mAh |
| 855465 | 8.5*54*65mm | 8.5*54*65mm | 3.7V 4000mAh |
| 863040 | 8.6*30*40mm | 8.8*30*42.5mm | 3.7V 1000mAh |
| 904060 | 9*40*60mm | 9.2*40*62.5mm | 3.7V 2500mAh |
| 883760 | 8.8*37*60mm | 9*57*51.6mm | 3.7V 2000mAh |
| 103048 | 10.2*30*48mm | 10.2*30*50.5mm | 3.7V 1500mAh |
| 103040 | 10.2*30*40mm | 10.2*30*42.5mm | 3.7V 1200mAh |
| 114261 | 11*42*61mm | 11*42*63.5mm | 3.7V 3400mAh |
| 122773 | 12*27*73mm | 12*27*75.5mm | 3.7V 2400mAh |
Product Images
Why Choose Gold Power Energy
Technology
- All-weather applicability (-30~60℃)
- Highly safe battery design technology with the newest electrolyte and separator technology
- Full coverage of battery variety: Lithium ion cylindrical battery, lithium polymer battery, LiFePO4 battery, solar energy storage battery pack, square aluminum shell, primary battery, etc.
Research & Development
![Gold Power Energy R&D Facility]()
Experienced R&D team with over 60 engineers and advanced equipment for supporting OEM and ODM requirements.
Quality Control
![Quality Control Process]()
Certifications
![Certification Documentation]()
CE
RoHS
BIS
KC
CB
UL
MSDS
UN38.3
IEC62133
Factory Tour
![Gold Power Energy Factory Facility]()
Shenzhen Gold Power Energy Co., Ltd is one of the leading battery suppliers in China. We have been providing various batteries including Li polymer battery, Lithium ion battery, LiFePO4 battery, and customized battery packs since 2001.
