2400 Nm3/H PSA purification Fuel Cell Hydrogen Manufacturing Unit

2400 Nm3/H PSA purification Fuel Cell Hydrogen Manufacturing Unit

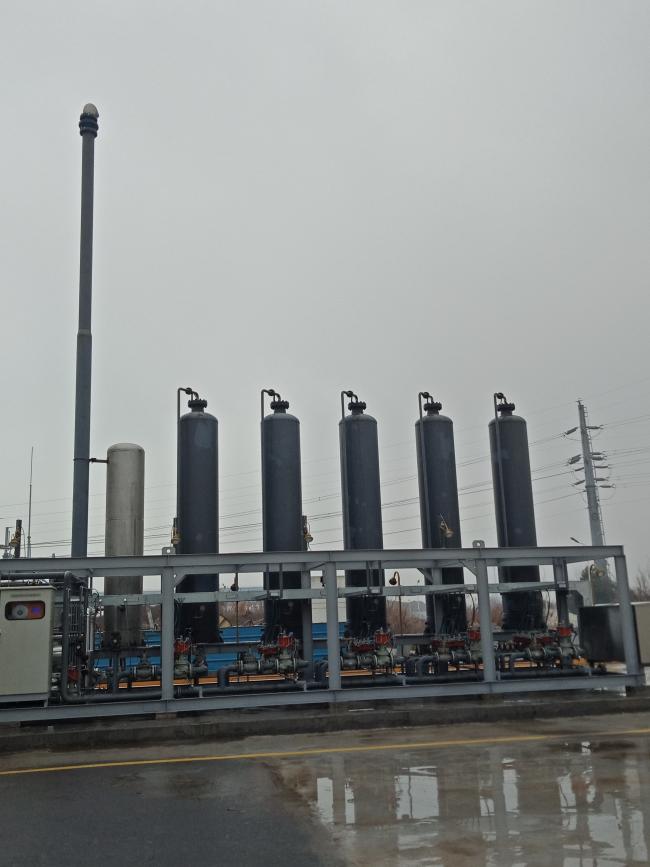

Jinqiao Fengyi 2400 Nm3/h PSA Hydrogen Fuel Cell Plant

Technology Application:

Hydrogen-rich gas is separated and purified for high purity hydrogen and proton

membrane fuel cell hydrogen standards(ISO 14687) through double high pressure swing adsorption technology(THiPSA^TM).

Hydrogen purification: The prepared hydrogen contains a large number of impurities, such as CO, CH4, CO2, N2, O2, H2O, etc., which need to be separated and purified by PSA technology, and purified to a very high purity to meet the use of hydrogen fuel cells. The purified hydrogen is transported to the hydrogenation station through pipelines, liquefaction, compression and other ways, and then injected into hydrogen vehicles as energy.

Technical indexes:

Purity: ≥99.999%

Capacity: 200~10000Nm3/h

Features and advantages:

High purity :≥99.999%

High yield:≥85%(at least 5% higher than traditional PSA technology).

Mature process technology and safe and reliable operation.

Special programmable control valve with high level ofautomatic.

Short cycle of project construction and investment recovery rate.

Techairs^TM efficient adsorption tower

The adsorption tower is the key equipment of the hydrogen production unit. The equipment is the fourth generation improved product designed for optimization of the hydrogen production unit by Techairs. The internal structure has made a breakthrough in the structure of a traditional hydrogen production adsorption tower and used special structural airflow distribution and dense phase filling technology, having greatly improved efficiency of adsorption and product yield. The equipment is designed with stress analysis, which has solved the problem of fatigue failure of the equipment. It’s equipped with good welding, mechanical, machining performance, etc.
