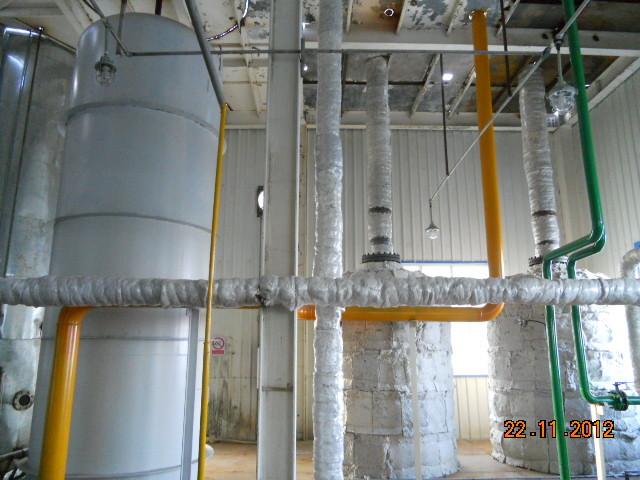

60000 Kg/H Ethanol Dehydration System Adsorption Tower Insulation

60000 Kg/H Ethanol Dehydration System Adsorption Tower Insulation

Bole 70 tons per day Ethanol Dehydration System

Technology Application:

The new technology of dehydration with variable temperature and pressure(FTrPSA)is adopted, featuring in low energy consumption (each ton of ethanol products only consumes 0.1 ton od steam), High purity( the concentration of the ethanol products can exceed 99.995%) And high yield(The compared membrane separation method is of higher yield), And the dehydrated molecular sieve is the OEM designated by DAVY technology of UK, and the technology and devices are sold overseas.

Process principle

With the continuous entering of mixed gas into the adsorption bed, the enrichment area of each component changes constantly, the enrichment area of strong adsorption components gradually expands, and the "substitution effect" occurs. The enrichment area of weak adsorption components is occupied by the strong adsorption components and gradually decreases. The adsorption of ethanol (C2H5OH) is weak, and it flows out at the outlet of the adsorption bed. The rest of the components (organic matter) flow out from weak to strong, and we can get different concentrations of effluent by controlling the outflow time. The effluent obtained before H2O outflow is ethanol with high purity (C2H5OH), so that the separation and purification of ethanol (C2H5OH) can be realized. The adsorption of H2O was the strongest, and finally it flowed out. After H2O flows out, the enrichment area of H2O is almost full of the whole adsorption bed. By pressure releasing and vacuum extraction, the enriched H2O in the adsorption bed can be desorption and recovered, so that the separation of H2O from other gas components can be realized.

Life guarantee

The life guarantee value of adsorbent is 5 years;

The life guarantee value of the valve body is 10 years;

The guaranteed service life of the equipment is 15 years.

Specifications:

Scale: 500 ~ 500000 t/ y

Water content of ethanol products: 200~ 5000 ppm

Ethanol yield: ≥99.9%

Steam consumption:≤0.1 t/ t C2H6O

Turndown: 50% to 110%
