2288H V5 HDD Rack Mount Servers 02311XBR H22H-05-S25AEF

Price Negotiable

Price: Negotiable

MOQ: Negotiable

Delivery Time: 7-15 days

Brand: Huawei

Product Description

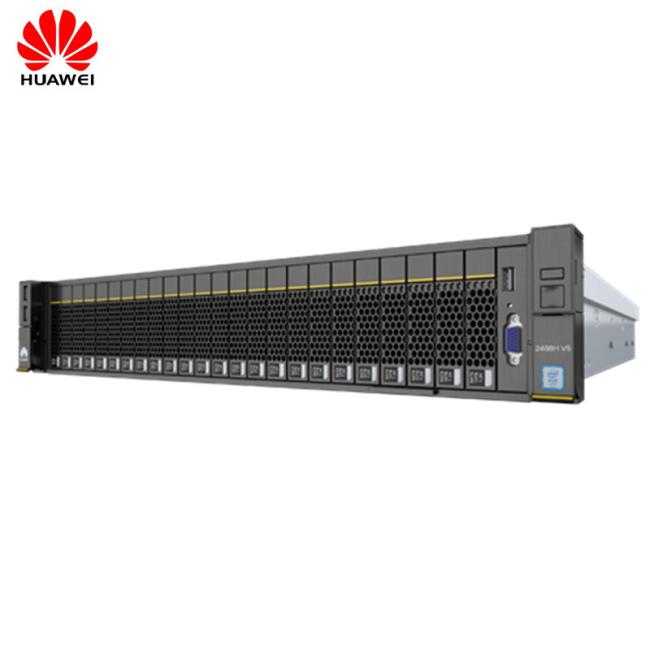

FusionServer Pro 2288H V5 25*2.5inch HDD server 02311XBR H22H-05-S25AEF

BOM	Model	Description
Hard Disk(with 2.5inch; Front Panel)-NVMe
02312FPR	ES3500P1TW2	ES3500P V5 SSD,1000GB,NVMe PCIe,Read Intensive,2.5inch(2.5inch Drive Bay)
02312FPX	ES3500P2TW2	ES3500P V5 SSD,2000GB,NVMe PCIe,Read Intensive,2.5inch(2.5inch Drive Bay)
02312FQB	ES3500PV54000W2	ES3500P V5 SSD,4000GB,NVMe PCIe,Read Intensive,2.5inch(2.5inch Drive Bay)
02312FQD	ES3500PV58000W2	ES3500P V5 SSD,8000GB,NVMe PCIe,Read Intensive,2.5inch(2.5inch Drive Bay)
02312FQS	ES3600P800GW2	ES3600P V5 SSD,800GB,NVMe PCIe,Mixed Use,2.5inch(2.5inch Drive Bay)
02312FQV	ES3600P1600GW2	ES3600P V5 SSD,1600GB,NVMe PCIe,Mixed Use,2.5inch(2.5inch Drive Bay)
02312FQW	ES3600P3200GW2	ES3600P V5 SSD,3200GB,NVMe PCIe,Mixed Use,2.5inch(2.5inch Drive Bay)
02312FRA	ES3500PV56400W2	ES3600P V5 SSD,6400GB,NVMe PCIe,Mixed Use,2.5inch(2.5inch Drive Bay)
Hard Disk(with 3.5inch; Front Panel)-SAS
02311HAS	N300S1210W3	HDD,300GB,SAS 12Gb/s,10K rpm,128MB or above,2.5inch(3.5inch Drive Bay)
02311EEL	N300S15W3	HDD,300GB,SAS 12Gb/s,15K rpm,128MB,2.5inch(3.5inch Drive Bay)
02311HAT	N600S1210W3	HDD,600GB,SAS 12Gb/s,10K rpm,128MB or above,2.5inch(3.5inch Drive Bay)
02311EEM	N600S15W3	HDD,600GB,SAS 12Gb/s,15K rpm,128MB,2.5inch(3.5inch Drive Bay)
02311WYU	N900S15W3	HDD,900GB,SAS 12Gb/s,15K rpm,256MB or above,2.5inch(3.5inch Drive Bay)
02311NHV	N1200S1210W3	HDD,1200GB,SAS 12Gb/s,10K rpm,128MB or above,2.5inch(3.5inch Drive Bay)

Technical Specifications

FusionServer Pro 2288H V5 Rack Server
The Huawei FusionServer Pro 2288H V5 is an a 2U, 2-socket rack server. FusionServer Pro 2288H V5 has been verified by Intel as an Intel® Select Solution for NFVI and it supports the configuration of over 100 types of resources with just one model, flexibly meeting the hardware resource requirements of diverse workloads. It is an ideal choice for diverse applications, such as cloud computing virtualization, databases, High-Performance Computing (HPC), and big data processing.

Model	FusionServer Pro 2288H V5
Form Factor	2U, 2-socket rack server
Processors	1 or 2 1st Generation Intel® Xeon® Scalable processors (3100/4100/5100/6100/8100 series), up to 205W 1 or 2 2nd Generation Intel® Xeon® Scalable processors (3200/4200/5200/6200/8200 series), up to 205W
Memory	24 DDR4 DIMM slots, 2,933 MT/s; up to 12 DCPMMs, 2,666 MT/s
Internal Storage	Supports the following hard drive configuration options: 8 x 2.5-inch SAS/SATA HDDs or SSDs 12/16/20 x 3.5-inch SAS/SATA HDDs 4, 8, 12, 24, or 28 NVMe SSDs 31 x 2.5-inch SAS/SATA HDDs or SSDs Flash storage: 2 M.2 SSDs
RAID Support	RAID 0, 1, 10, 1E, 5, 50, 6, or 60 Configured with a supercapacitor for cache power-off protection (optional) RAID level migration, drive roaming, self-diagnosis, and web-based remote configuration
Network Ports	LOM: 2 x 10 GE + 2 x GE ports Flexible NIC: 2 x GE, 4 x GE, 2 x 10 GE, 2 x 25 GE, or 1/2 x 56G FDR IB ports
PCIe Expansion	Up to 10 PCIe 3.0 slots, including 1 for a RAID controller card and 1 for a flexible NIC.
Fan Modules	4 hot-swappable fan modules with optional N+1 redundancy
Power Supply Units	2 hot-swappable PSUs with support for 1+1 redundancy and the following configuration options (see note 1): 550W AC Platinum PSUs 900W AC Platinum/Titanium PSUs 1,500W AC Platinum PSUs 1,500W 380V HVDC PSUs 1,200W -48V to -60V DC PSUs
Management	Huawei iBMC integrates one dedicated management GE network port to provide comprehensive management features such as fault diagnosis, automated O&M, and hardware security hardening. iBMC supports standard interfaces such as Redfish, SNMP, and IPMI 2.0; provides a remote management interface based on HTML5/VNC KVM; supports CD-free deployment and the Agentless feature, simplifying management. (Optional) Configured with the Huawei eSight management software to provide advanced management features such as stateless computing, batch OS deployment, and automated firmware upgrade, enabling smart and automatic entire-lifecycle management.
Operating Temperature	5ºC to 45ºC (41ºF to 113ºF), and ASHRAE A3 and A4 compliant
Certifications	CE, UL, FCC, CCC, and RoHS
Installation suite	L-shaped guide rails, adjustable guide rails, and holding rails
Dimensions (H x W x D)	Chassis with 3.5-inch hard drives: 86.1 mm x 447 mm x 748 mm (3.39 in. x 17.60 in. x 29.45 in.) Chassis with 2.5-inch hard drives: 86.1 mm x 447 mm x 708 mm (3.39 in. x 17.60 in. x 27.87 in.)
