1.2 Step Angle Hybrid Stepper Motor 6 Leads 3 Wire Nema 23 57mm 9V 5.6A
Nema 23 57mm Hybrid Stepper Motor Low Noise 1.2 Step Angle 6 Leads 3 Wire 9V 5.6A
A hybrid stepper motor consists of a permanent magnet sandwiched between the two rotor halves (causing axial polarity), which make up the spinning part of the motor, placed into a stator housing where the stator coils of wire make up the different motor phases. Lin hybrid stepper motors have two phases, where each phase has four coils. The phase is magnetized where the A and A- phases (or B and B-)are magnetized at the same time, so that both A phases are magnetized as one pole, and both A- phases are magnetized as the opposite pole because the winding direction of the A phase is opposite the winding direction of the A- phase.
Electrical Specification Of Hybrid Stepper Motor
| MODEL | STEP ANGLE (°/STEP) |
LEAD WIRE (NO.) |
VOLTAGE (V) |
CURRENT (A/PHASE) |
RESISTANCE (Ω/PHASE) |
INDUCTANCE (MH/PHASE) |
HOLDING TORQUE (KG.CM) |
MOTOR HEIGHT L(MM) |
MOTOR WEIGHT (KG) |
| 57BYGH350A-001 | 1.2 | 6 | 3.12 | 2.4 | 3.4 | 4.0 | 4.0 | 41 | 0.45 |
| 57BYGH350A-002 | 1.2 | 3 | 5.0 | 0.5 | 10 | 16 | 2.0 | 41 | 0.45 |
| 57BYGH350B-001 | 1.2 | 3 | 2.52 | 5.6 | 0.45 | 1.1 | 9.0 | 56 | 0.69 |
| 57BYGH350B-002 | 1.2 | 6 | 5.28 | 2.4 | 2.2 | 2 | 7.0 | 56 | 0.75 |
| 57BYGH350C-001-09 | 1.2 | 3 | 2.6 | 5.2 | 0.5 | 1.4 | 12 | 76 | 1.05 |
| 57BYGH350C-005-01 | 1.2 | 3 | 9.0 | 1.0 | 9.0 | 21 | 9 | 76 | 1.10 |
You can download our 57BYGH350 Hybrid Stepper Motor product brochure:57BYGH350.pdf
Wiring Diagram

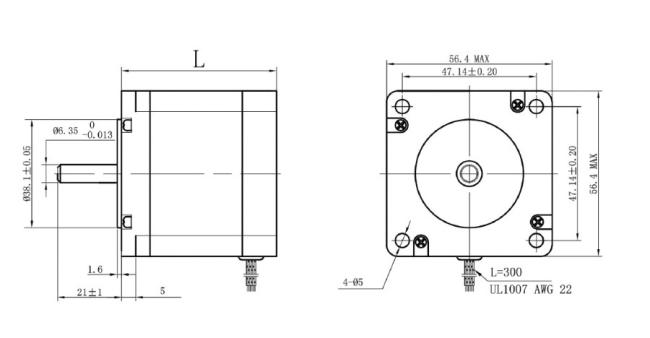

Mechanical Dimension Of Hybrid Stepper Motor
