0.9 Step Angle Hybrid Stepper Motor 4 Leads 6 Wire 12V 4.2A Nema 23 57mm
Low Noise Nema 23 57mm Hybrid Stepper Motor 0.9 Step Angle 4 Leads 6 Wire 12V 4.2A
NEMA 23 motor with a cylindrical body and square flange. The motor length is from 41-78mm, with a wide range of torque from 3.5 kg.cm to 13 kg.cm. The dielectric strength is 500VAC 1 minute and the insulation resistance is 100MΩ Min.500VC DC.
Hybrid stepper motors are used in many different applications that require accurate and repeatable positioning and speed control. They are used in industries such as: Aerospace & Defense, Automation & Packaging, Medical, Printing & Engraving, Security & Surveillance Systems, Semiconductors, and Solar & Green Technology.
Electrical Specification Of Hybrid Stepper Motor
|
You can download our 57BYGHM Hybrid Stepper Motor product brochure:57BYGHM.pdf

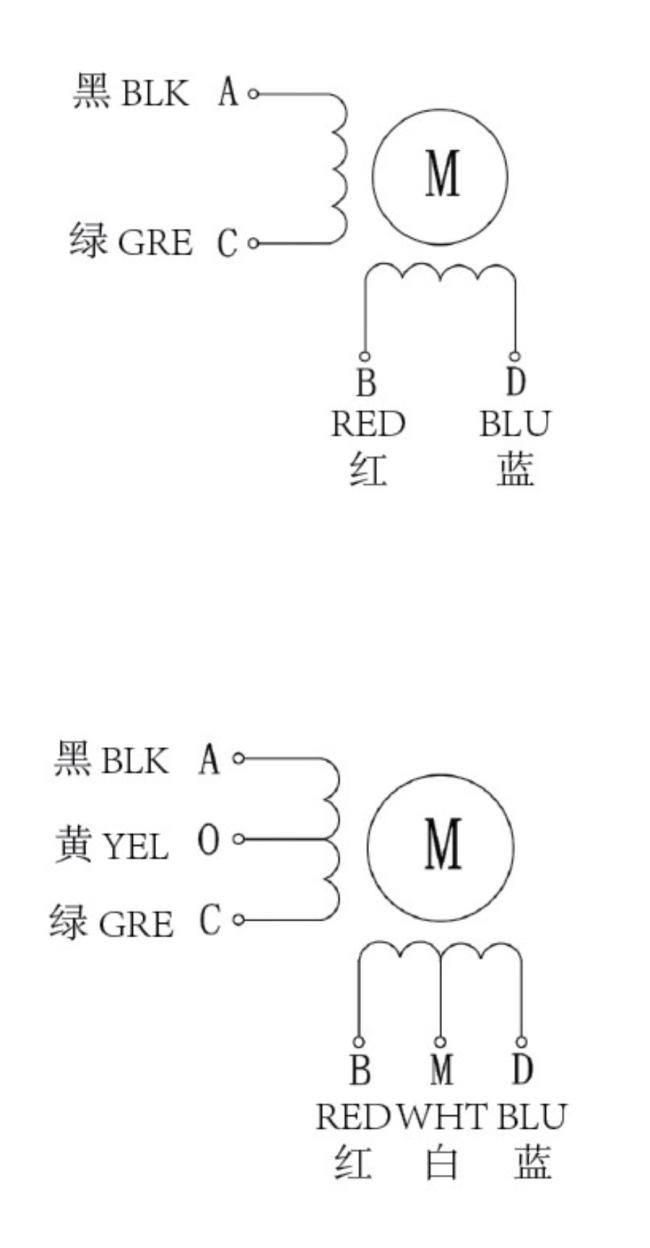

Wiring Diagram

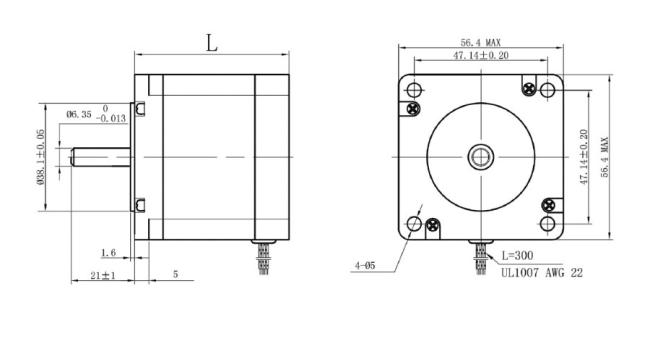

Mechanical Dimension Of Hybrid Stepper Motor
Market Range of Hetai
Hetai also sends its products to the USA, Europe, Southeast Asia, and all-around China.
Product Range Of Hetai
Our main products are Stepper Motor, Planetary Gearbox& Gearbox Motor, Brushless DC Motor, Servo Motor.
ChangZhou Hetai Motors is an experienced motor manufacturer. For more than 20 years, Hetai dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.
Automatic Assembly Line Of Stepper Motor
CNC Machining Center
Certification Of Brushless DC Motor
