Nema 34 85mm Hybrid Stepper Motor 1.8 Step Angle 4 Or 8 Lead Wire 5.6V 7A
High Performance Nema 34 85mm Hybrid Stepper Motor 1.8 Step Angle 4 or 8 Lead Wire 5.6V 7A
A hybrid stepper motor is a combination of the variable reluctance and permanent magnet type motors. The rotor of a hybrid stepper motor is axially magnetized like a permanent magnet stepper motor, and the stator is electromagnetically energized like a variable reluctance stepper motor. Both the stator and rotor are multi-toothed.
The word Hybrid means combination or mixture. A hybrid stepper motor or a HB stepper motor is a combination of the features of the Variable Reluctance Stepper Motor and Permanent Magnet Stepper Motor. The shaft of a stepper motor rotates in discrete step increments when electrical command pulses are applied to it in the proper sequence. HB Stepper motors are the easiest devices for precise positioning control. They are widely being used in various application for position and speed via all kinds of control signals such as digital, analog, communication etc.
Electrical Specification Of Hybrid Stepper Motor
| MODEL | STEP ANGLE (°/STEP) |
LEAD WIRE (NO.) |
VOLTAGE (V) |
CURRENT (A/PHASE) |
RESISTANCE (Ω/PHASE) |
INDUCTANCE (MH/PHASE) |
HOLDING TORQUE (N.M) |
MOTOR HEIGHT L(MM) |
MOTOR WEIGHT (KG) |
| 85HS68-1404-001 | 1.8 | 4 | 5.6 | 1.4 | 4.0 | 24.0 | 2.8 | 68 | 1.8 |
| 85HS68-4004-001 | 1.8 | 4 | 2.4 | 4.0 | 0.6 | 2.8 | 2.8 | 68 | 1.8 |
| 85HS80-4208-001-02 | 1.8 | 8 | 4.6 | 2.97 | 1.55 | 6.76 | 3.2 | 80 | 2.3 |
| 85HS80-5504-001-06 | 1.8 | 4 | 1.6 | 4.0 | 0.4 | 3.5 | 3.0 | 80 | 2.3 |
| 85HS97-3008-001 | 1.8 | 8 | 4.8 | 3.0 | 1.6 | 8.0 | 5.0 | 97 | 2.8 |
| 85HS97-4006-001 | 1.8 | 6 | 3.4 | 4.0 | 1.0 | 5.0 | 4.4 | 97 | 2.8 |
| 85HS116-4208-001 | 1.8 | 8 | 5.0 | 4.2 | 1.2 | 6.5 | 6.0 | 116 | 3.6 |
| 85HS116-5004-001 | 1.8 | 4 | 4.5 | 5.0 | 0.9 | 11.0 | 8.5 | 116 | 3.6 |
| 85HS126-4008-001 | 1.8 | 8 | 6.0 | 4.0 | 1.5 | 8.0 | 6.8 | 126 | 3.8 |
| 85HS126-6408-001 | 1.8 | 8 | 1.53 | 6.4 | 0.536 | 2.86 | 6.2 | 126 | 3.8 |
| 85HS131-3004-001 | 1.8 | 4 | 5.1 | 3.0 | 1.7 | 18.0 | 9.0 | 131 | 4.2 |
| 85HS131-7004-001 | 1.8 | 4 | 2.8 | 7.0 | 0.4 | 4.0 | 9.0 | 131 | 4.2 |
| 85HS155-5004-001 | 1.8 | 4 | 4.0 | 5.0 | 0.8 | 10.0 | 11.0 | 155 | 5.0 |
| 85HS155-6504-001 | 1.8 | 4 | 3.9 | 6.5 | 0.6 | 7.0 | 10.0 | 155 | 5.0 |
You can download our 85HS Hybrid Stepper Motor product brochure:85HS.pdf

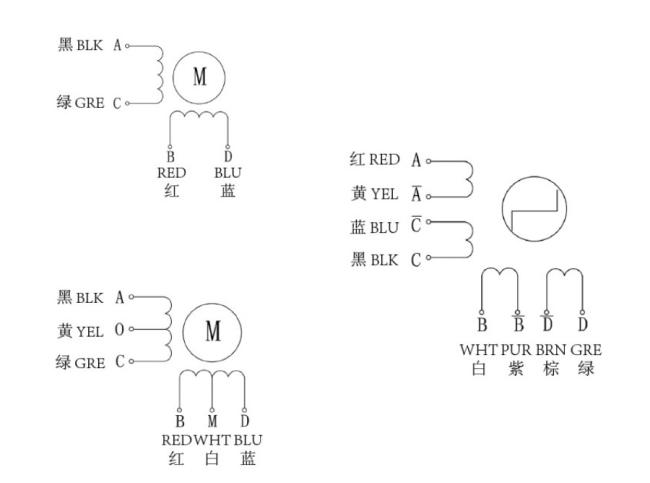

Wiring Diagram

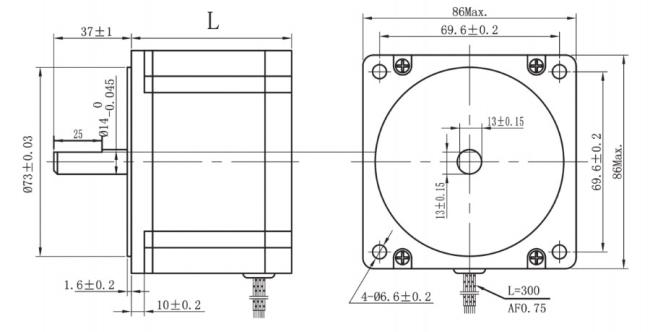

Mechanical Dimension Of Hybrid Stepper Motor
