Mindray PM7000 PM-7000 Patient Monitor Parts Main Board Mother Board 9210-30-30150

Mindray PM7000 PM-7000 Patient Monitor Main Board Mother Board 9210-30-30150 Patient Monitor Parts

► Brief Introduction

Main board is the most important unit of the patient monitor. It is designed to realize system control, system scheduling, system management, file management and print management as well as to finish data processing, displaying, and storage, system diagnosis and fault alarm, etc.

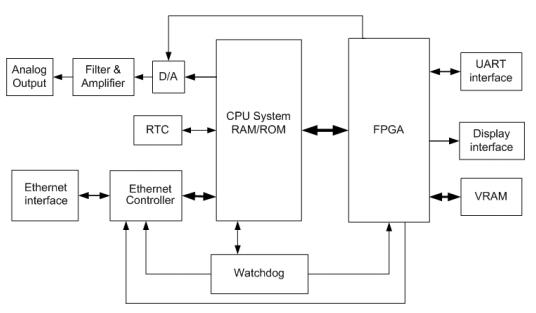

► Principle

The main board, being the center part of the system, has serial ports to various modules , TFTdisplay interface, analog VGA interface, Ethernet interface and analog/aux output. The BDM interface is reserved on the board for debugging or downloading software.

1. CPU System

CPU is the core element on the main board. It connects peripheral modules through BUS and I/Os in order to finish data communication, data processing and logic control, etc.

2. RTC

RTC (real-time clock) provides time (hour, minute, second) and date (year, month, day,) information. RTC information can be changed by CPU.

Ethernet Controller

Ethernet Controller complies with IEEE802.3 / IEEE802.3u LAN standard, supports 10Mbps and 100Mbps data rates, and realizes the data communication between CPU and Ethernet.

3. Analog Output/AUX OUTPUT

D/A converter converts ECG or IBP digital signals coming from CPU into analog signals, which after being low-pass filtered and amplified in Filter & Amplifier circuit are output to external part. AUX OUTPUT has another function: Nurse Call. For this function, please refer to the operation manual.

4. FPGA and VRAM

VRAM is used to save display data. CPU sends display data to VRAM via FPGA. The data in VRAM is a map of the real display device.

FPGA has various extended serial ports, which communicate with external parameter modules. CPU writes acquired data to FPGA, and FPGA sends it to external parameter modules.

5. Watchdog

Upon power-up, Watchdog supplies Reset signals to CPU, FPGA and Ethernet Controller. Provide functions of Waterdog Timer Output and voltage supervise.

► Resparation

► Schematic Diagram

► Shopping Information

Dear customers, To make sure the deal runs successfully and efficiently, please learn about and agree to the following clauses and terms. There are mainly two important things that you need to know well. The first thing is that you’d better bear in mind to look through all the product pictures with patience when purchasing so that you can confirm the item you are viewing is just what you are looking for and need to buy. It is absolutely necessary to do so as product pictures also play essential roles in product description, which helps you understand the product more intuitively and detailedly. The second thing comes to the customs fees. Please kindly know that the buyer is responsible for the customs fees such as all taxes and duties. Consequently, before paying for orders you must check out that the equipment your are ordering is allowed to imported into your country. That is to say, remember to read all the relevant information before ordering.

Thank you for your time and interest in Mindray PM7000 PM-7000 Patient Monitor Main Board Mother Board 9210-30-30150 Patient Monitor Parts.

"Quality assurance" is our eternal pursuit and promise. Don't be hesitant to contact us! Welcome to place your orders.
