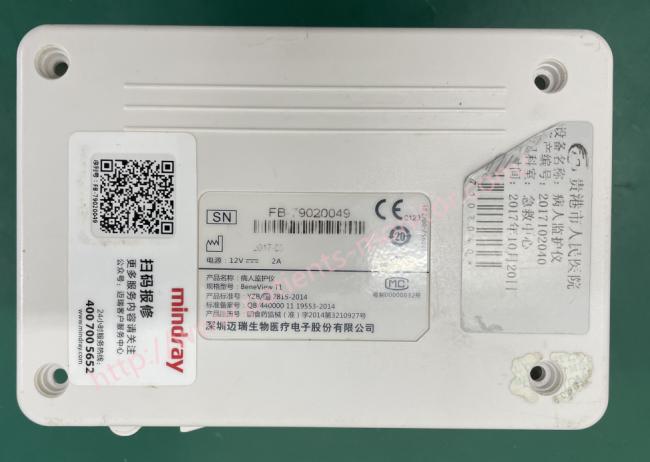

Mindray BeneVew T1 Patient Monitor Parts Back Cover Case PN 043-001734 115-018386-00
Mindray BeneVew T1 Patient Monitor Back Cover Case PN 043-001734 115-018386-00
Disassembling the Rear Housing Assembly
1. Remove the four plastic covers covering the screw holes. Then unscrew the four M3×8 screws, as shown in the figure below:

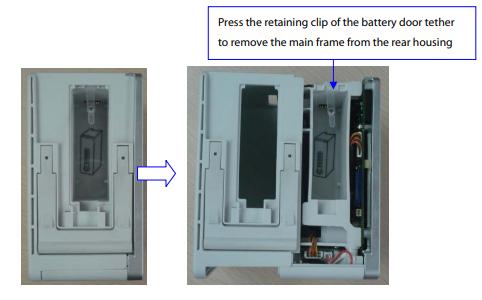

2. Carefully separate the front case from the back case. Press down on the battery cover tether and remove the battery cover from the tether. This will allow the back shell to separate from the main frame
Rear View
1. AC input
2. Ground terminal for the same potential
3. VGA connection: connecting an external monitor.
4. Connecting an external device: Connect the T1 to the host monitor with the T1 connection cable (P/N 009-003591-00 (1m) or P/N 009-003592-00 (4m)).
5. USB interface: Connect USB devices such as U disk, mouse and keyboard.
6. Network port: Standard RJ45 connector for connecting the patient monitor to the CMS or CIS system.
Physical Specifications
| Patient monitor (with battery) size and weight |
143 mm×77 mm×102 mm (5.6 inch×3.0 inch×4.0 inch). 0.93 kg (2.0 pound) |
| Screen type | Color TFT LCD |
| Screen Size | 5 inch |
| Resolution | 480×272 pixels |
