► Brief Introduction

The peripheral components of control panel include encoders, keys, trackball, LED, buzzer, TGCs and so on. The control panel is powered by 5V and 12V external power supply. The encoders and trackball are 5V powered, LEDs and drive circuit are 12V powered, and other circuits are 3.3V powered.

Control panel can communicate with the master board through USB;

Checking keys on the control panel

Check all keys on the control panel from left to right and from up to down to see if they can work properly.

If a video printer is connected to the system, check if the [Print] key can work normally.

Clean the enclosure and control panel

Use neutral cleanser to remove the dust on the enclosure of main unit and on the control panel. If it is difficult to clean the control panel, disassemble the keys first and then use neutral cleanser to clean it.

► Disassemble

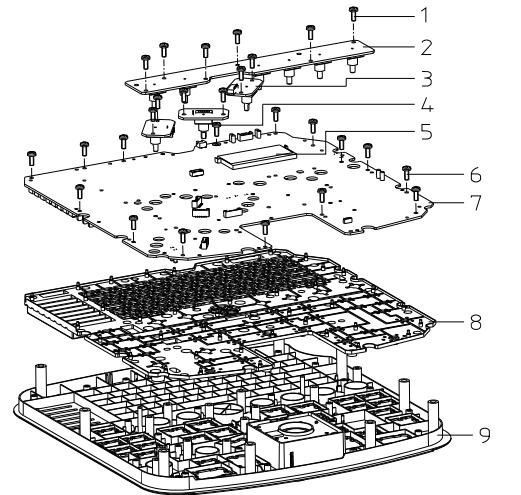

1. Disassemble the control panel module
2. Pull out the 8 TGC knobs and 9 encoder knobs upward from the control panel.
3. Take off the encoder 6-to-1 connecting board, each single encoder connecting board and the control panel buckled board.
4. Pull out the connecting cable plug of the buzzer from the control panel.
5. Remove the 26 PT3X10 screws on the control panel and the 1 M3X8 screw which is used to secure the grounding wire.
6. Take out the control panel and the keys from the keyboard cover, and then separatethem to finish the replacement.
