3202497-002 Medical Equipment Parts Med-tronic Lifepak20 LP20 Defibrillator Top Case Paddle Holder

Hospital Medical Equipment Med-tronic Lifepak LP20 Defibrillator Cover Case

► Brief Introduction

LIFEPAK® 20 Defbrillator/Monitor

Clinically advanced and packed with power, the LIFEPAK 20 defbrillator/monitor is highly intuitive for frst responders, and also skillfully combines AED function with manual capability so that ACLS-trained clinicians can quickly and easily deliver advanced therapeutic care.

Early defbrillation with AED Mode. The adult standard paddles can be used for any pediatric patient weighing approximately 10 kg (22 lb) or more as long as the paddles fit completely on the chest and there is at least 2.5 cm (1 in.) of space between the paddle electrodes. Pediatric paddles should be used for patients weighing 10 kg (22 lb) or less or those whose chests are too small to accommodate the adult paddles.

The standard paddle set is an accessory for the LIFEPAK 20 defibrillator/monitor and includes adult and pediatric defibrillator (hard) paddles. The standard paddles can be used for QUIK-LOOK® ECG monitoring, defibrillation, and synchronized cardioversion therapies. When using standard paddles, a conductive interface designed for defibrillation, such as defibrillation gel or gel pads, must be used between the paddle electrode surface and the skin.

► Specification

► To remove the top case assembly from the defibrillator:

1. Disconnect the defibrillator from ac power.

2. Place the defibrillator face down.

3. Remove the A07 Battery.

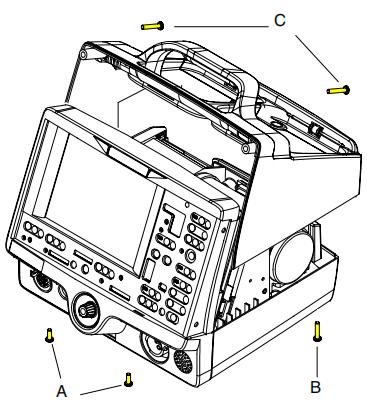

4. Remove two 6-32 × .375 screws (169), A in graphic at left, securing the bottom case to the front case.

5. Remove two 6-32 × 1.75 screws (167), B in graphic at left, securing the bottom case to the top case.

6. Place the defibrillator on its bottom.

7. Remove two 6-32 × 1.75 screws (167), C in graphic at left, securing the top case to the front case (outboard screws).

8. Pull the front case slightly away from the top case, and slide the top case up and away from the rest of the defibrillator.

9. Discharge the A13 Capacitor.

► Delivery Instructions

As a general rule, all the orders are going to be shipped within 3 to 5 working days and delivered on time. Of course sometimes there are some special circumstances. For instance, on busy days the shipment will be postponed. But no worries, all the orders will be dispatched finally. We will make great efforts to process the orders and ship them out as soon as possible. Please stay patient and keep in touch with us. If you need the product to be shipped urgently, please make sure you talk to us in advance before placing your orders. In order to make the deal runs successfully, please make it a point and manage your time of placing orders on the basis of your business needs. If you have any questions such as your order is taking much more time than expected or you need to know when will your order arrive, you can contact us at anytime. We will reply you as soon as possible. Your satisfaction is our biggest wish.

Thank you for your time and interest in Med-tronic Lifepak20 LP20 Defibrillator Top Case Paddle Holder 3202497-002 Assembly. If you want to explore more details please let us know.
