043-003151 Mindray VS600 Vital Signs Patient Monitor Parts Front Housing Panel

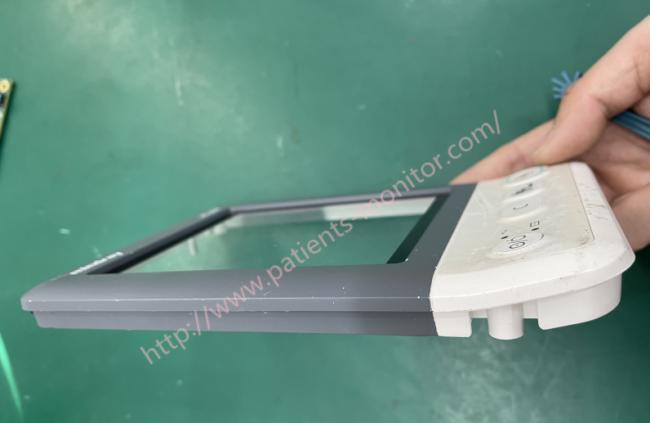

043-003151 Mindray VS600 Vital Signs Patient Monitor Front Panel

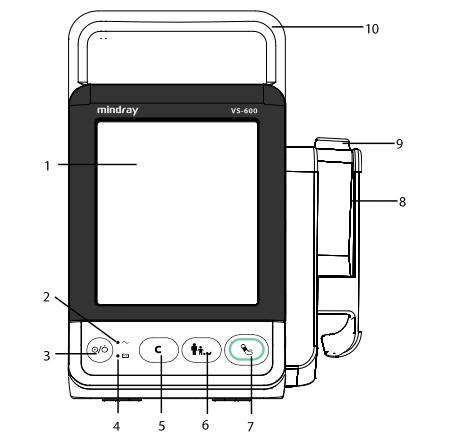

Front view

1. display screen

2. AC power indicator

▲ On:indicates that the monitor is connected to the AC power

▲ Off:indicates that the monitor is not connected to the AC power

3. power ON/OFF switch

▲ Press this key to turn the monitor on

▲ If no parameter is being measured ,press this key to enter standby mode

▲ When the monitor is on ,press and hold this key for above 2 seconds to turn the monitor off

An indicator is built in this switch .It turns green when the monitor is on ,turns yellow when the monitor enters standby mode ,and turns of when the monitor is off

4. Battery indicator

▲ On:indicates that the battery is installed and AC power is connected .

▲ Off:indicates that the battery is not installed

▲ Flash:indicates that the monitor is powered by battery

5. clear key

▲ In measurement mode ,press this key to clear current parameter value and error code

▲ In measurement mode ,press and hold this key for above 2 seconds to access parameter Setup mode

▲ When the monitor is starting up and a beep is heard ,press and hold this key within 10 seconds to access maintenance mode

6. patient category key

In measurement mode ,press this key to toggle among adult ,pediatric and neonate

7. NIBP Start/Stop key

In measurement mode ,press this key to start or stop NIBP measurement

8. probe cover pack holder

9. temperature probe well

10.handle

Disassembling the Front Housing Assembly

Note

▲ To disassemble the equipment, place the equipment on a work surface free from foreign material, avoiding damaging the screen.

▲  Remember to install the screen support pad properly during reassembly.

▲ Operations relating to optional parts may not apply to your equipment.

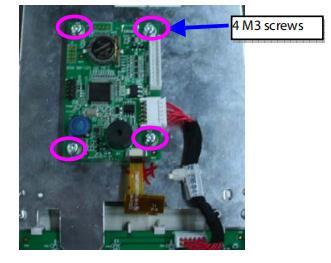

1.Removing the Main Board

Disconnect the cable between the main board and keypad board. Unscrew the four M3×6

screws and take out the main board, as shown below:

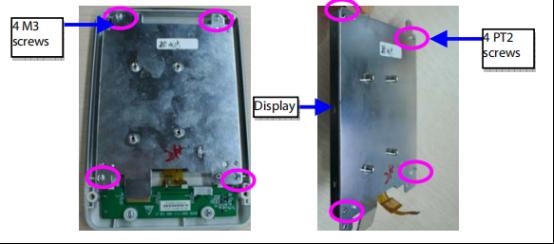

2.Removing the Display

Unscrew the four M3×8 screws as indicated below. Take out the display assembly. Then

unscrew the four PT2×6 and take out the display.

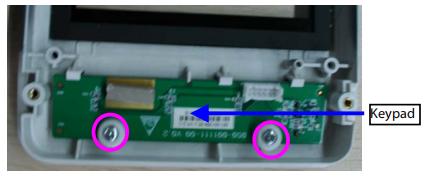

3.Removing the Keypad

Unscrew the Two PT3×8 screws indicated below and take out the keypad.
