PHiliph FM20 FM3 Fetal Monitor Display Buckle M2073-43102 Medical Fetal Monitor Parts
Medical Fetal Monitor Parts PHiliphh FM20 FM3 Fetal Monitor Display buckle M2073-43102

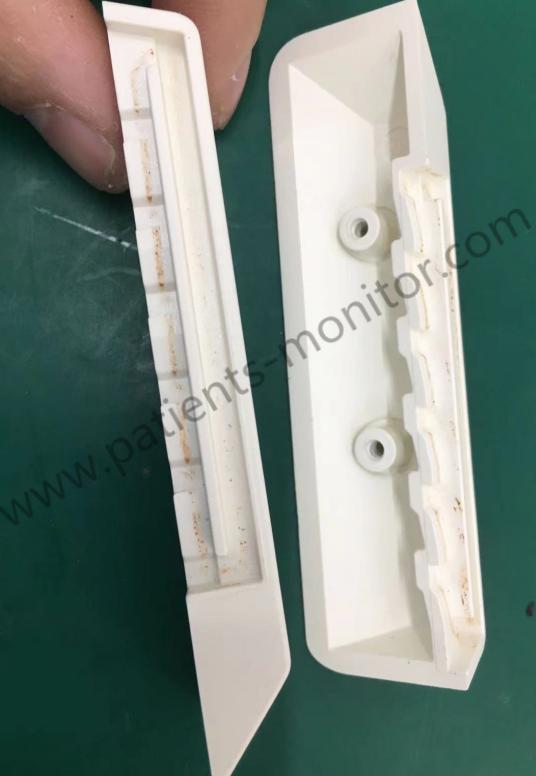

PHiliphh FM20 Fetal Monitor Display buckle M2073-43102
► Brief Introduction
Avalon Fetal/Maternal Monitor FM20, this fetal monitor Indicated for use by trained health care professionals whenever there is a need for monitoring of the physiological parameters uterine activity, heart rate, oxygen saturation, noninvasive blood pressure, pulse rate, and temperature of pregnant women and the fetal heart rates of single fetuses, twins, and triplets in labor and delivery rooms, in antepartum testing areas, in private households and during transports in healthcare facilities
Measurements are displayed on a 6.5-inch color display as numerics. The display is a touchscreen, and you operate the monitor using this touchscreen interface. The integrated recorder documents fetal and maternal measurements as well as the user-defined annotations.
► Specification
| Temperature Range | |
| Operating | without battery: 0°C – 45°C (32°F – 113°F) |
| with fully charged battery: 0°C – 40°C (32°F – 104°F) | |
| with battery charging: 0°C – 35°C (32°F – 95°F) | |
| Storage | -20°C – 60°C (-4°F – 140°F) |
| Humidity Range | |
| Operating | <95% relative humidity @ 40°C (104°F) |
| Storage | <90% relative humidity @ 60°C (140°F) |
| Altitude Range | |
| Operating | -500 – 3.000 m (-1.640 – 9.840 ft.) |
| Storage | -500 – 13.100 m (-1.640 – 43.000 ft.) |
► Features
- High-resolution color TFT touchscreen display with a wide viewing angle, displaying fetal and maternal measurements are as large, easy to-read numbers
- Intuitive user functionality via the touchscreen
- Quick and simple cleaning due to the absence of mechanical controls
- Optimized size and presentation of measurements with automatic screen layouts
- Displaying information such as: Patient identification (including the bed label when connected to a surveillance system such as OB TraceVue/IntelliSpace Perinatal), date and time, alarm information, recorder status, and prompt and error messages
- Fast access to functions e.g. starting a recording or resetting the Toco baseline via Configurable SmartKeys
- Adjustment of the heart rate and alarm volume with an indication of the current setting
- Automatic channel management allowing free selectable connection of all wired fetal transducers, patient module, or remote event marker to any of the fetal sensor sockets at the left side of the monitor
- Identification of the relation between transducer and numeric through a blue transducer Finder LED, while the position indicator on the screen shows to which fetal sensor socket a transducer is connected
- Comprehensive patient data presentation, including at-a-glance patient identification, and the choice to add user-configurable notes (Roman-8 character set)
- Optional battery operation based on a built-in Smart Battery (M4605A) and on an external AC/DC power supply (M8023A #E25 option); the monitor can operate using battery power for at least four hours
If you want to explore more details about PHiliphh FM20 Fetal Monitor Display buckle M2073-43102, please let us know. Thank you for your time and interest.
