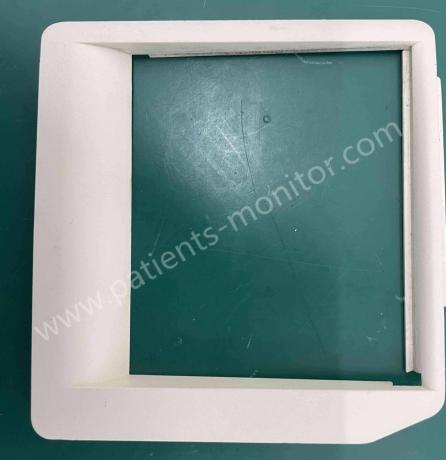

Med-tronic Physio-Control LIFEPAK 20 LP20 Defibrillator Printer Cover Assembly

► Brief Introduction

The Printer is a 50 mm, stepper motor-driven recorder. The printer receives serial data and commands from the User Interface PCB, converts the print data, and controls the motor-drive signals to perform the “muscle” part of printing. The printer returns status signals derived from the paper supply sensor and printer door to the UI PCB.

► Printer Module Installation

1. Slide the Printer Flex Cable under the ECG Cable and position the printer cable along right side the guide on the bottom case.
2. Insert the printer cable connector and 4-pin power cable connector through the large slot in the shroud.
3. Insert the 4-pin power connector through the small slot in shroud.
4. Connect the 4-pin power connector to the Power PCB, ensuring that the connector is positioned correctly.
5. Position the printer shroud in the bottom case.
6. Install three 4-40 × .312 screws into the bottom of the printer shroud
7. If removed, press the fastener into printer shroud to secure the flex connector.
8. Connect the Printer Flex Cable to the connector on the printer. The cable should lay flat against the rear of the printer.
9. Slide the Printer into the printer shroud.
10. Ensure that the Printer Flex Cable lays between the two capture screws.
11. Tighten the two capture screws located in the Printer.
12. Insert the printer bezel ensuring that it is flush with the bottom case.
13. Install the paper roll in the Printer and close the printer door.
14. Install the boardstack, if the Printer Flex Cable was replaced.
15. Install the front case.
16. Install the top case.
17. Install the Battery.
18. Review the labels parts list and install new labels.
