PRIMEDIC XD100xe M290 Defibrillator Machine Parts LED Display GMS WG320240AP3-TMLTZ
PRIMEDIC DefiMonitor XD100xe(M290) Defibrillator LED Display GMS WG320240AP3-TMLTZ
► Brief Introduction
The DefiMonitor XD is intended for use by properly trained first responders, trained emergency medical technicians and physicians in daily clinical situations as well as in clinics in the pre-clinic area of emergency medicine and can be powered either by a chargeable, removable energy module or by the power mains. The compact and light construction makes it possible to bring along the DefiMonitor when a patient is transported. In the maximum version, the DefiMonitor consists of a defibrillator, EKG, external pacemaker, data recorder, pulsoximetry and printer.
The device is used to perform trans-thoraxal defibrillations. The main application is defibrillation in asynchronous manual mode, an additional application is the cardio version of atrial flutters in synchronous, manual mode. The decision on the necessity to provide a shock can either be by the user in automatic mode and automated by shock recommendation by the divide in AED mode.
When in automated mode, the energy levels of the initial, second and third shock with maximum current nominal values of 20A, 25A and 30A as well as the capacitor voltage dependant on the patient impedance are provided by default. In manual mode, it is possible to select the energy levels of 5-360J in order to facilitate a weight-adequate setting of the defibrillation energy according to the experiences of the physician. Thus, the defibrillation of children is possible with the appropriate electrodes in manual mode.
In addition, the device can be used to record and display electrocardiograms. The defibrillation electrodes are derived from the Einthoven II derivation in proper use. If an EKG cable is used instead of the defibrillation electrodes and commercial EKG electrodes, dual-channel monitoring is possible. Here any (logical) selection of 2 signals from the Einthoven I, II, III or Goldberger aVR, aVL, aVF – analog derivations can be shown. The prerequisite for this is correct positioning.
► Features
- 320 x 240 Dots
- +5V Power Supply
- 1/240 Duty Cycle
- No controller
- Touch screen option (anolog type)

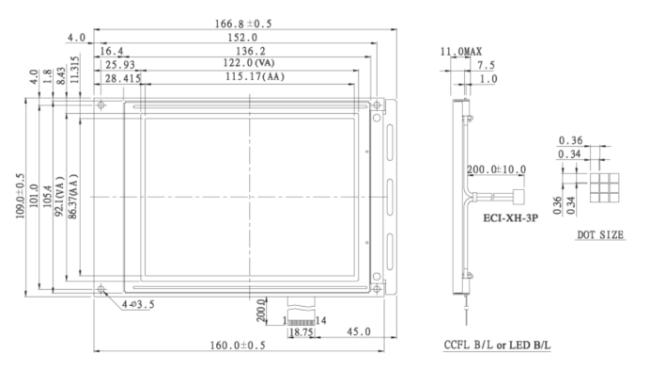

► Specification
| Type | TFT, LCD-Blue-Mode |
| Dimensions | 115 x 86 mm (diagonal 5.7“/144 mm) |
| Resolution | 320 x 240 (pixel size 0.36 x 0.36 mm) |
| Speed | 25 mm/s |
| Dot Size | 0.34x0.34mm |
| Dot Pitch | 0.36x0.36mm |
► Absolute Maximum Rating
| Item | Symbol | Standard Value | Unit | ||
| Min | Typ | Max | |||
| Power Supply | VDD-VSS | 4.75 | 5 | 5.25 | V |
| Input Voltage | VI | -0.3 | --- | VDD | V |
► Warm Tips
In order to avoid causing unnecessary trouble, please read the following carefully.
Please look through all the pictures with patience before placing orders to confirm the product is exactly you want or not as they are also an important part of the product description. What’s more, it is buyer’s responsibility to pay for all the customs fees including all taxes and duties. So it is of great necessity for you to make certain that the equipment you are ordering can be imported in to your country. Once the package leaves our factory, the shipper is not responsible for any delays any more. So please keep it in mind that be sure to check out all the relevant information before placing your orders.
Please kindly contact us, if you are interested in PRIMEDIC DefiMonitor XD100xe(M290) Defibrillator LED Display GMS WG320240AP3-TMLTZ, Thank you!
