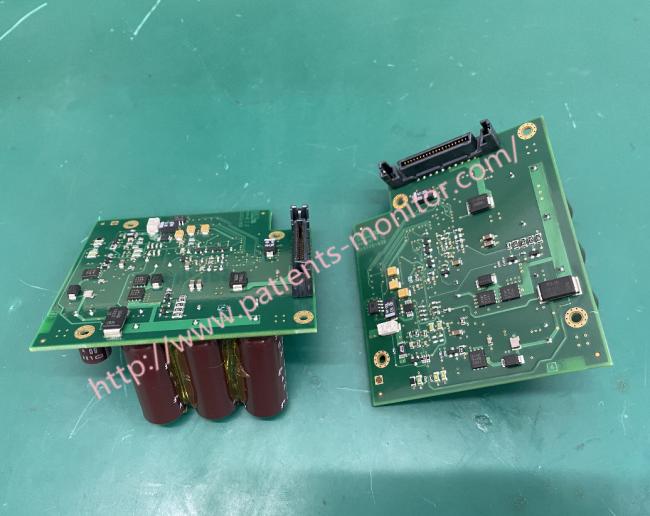

M8100-66560 PHiliph MP5 Patient Monitor parts Printer Connector Recorder Board

PHiliphh MP5 patient monitor printer connector recorder board M8100-66560

About PHiliphh MP5 patient monitor recording

The optional integrated recorder digitally records all active measurements and up to three waveforms. When the MP5 is connected to a host

monitor (complementary mode is displayed on the MP5 screen), only data from the MP5 can be printed locally to the built-in recorder. All data can

be printed on the recorder connected to the host monitor.

For centralized bedside recording, the monitor must be connected to the information center via the network. You can use the M1116B 2-channel

recorder or the M3160A 4-channel standalone recorder. Recordings made on the M3160A may differ slightly from those described here.

Alarm recording

You can configure the monitor to automatically trigger alarm logging to the message center or, if configured, send a real-time report to the printer.

1. Press the smart key Main Settings.

2. Select Alerts in the main settings menu.

3. Select Alarm Log from the Alerts menu to open the Alarm Log menu.

4. Select the measurement from the listed measurements for which you want to change the alarm condition that triggers the alarm log. This will open a pop-up list.

5. For the desired measurement, select the alarm condition that triggers the alarm log: Red Only: The alarm log will automatically activate when a

measurement enters a red alarm condition. Red and Shout: Both yellow and red alarms will trigger alarm recording. Off: Disables automatic alarm

recording.

FAQ

1. What’s the shipping cost ?

The shipping cost depends on packaging weight and volume .It will be appreciated to confirm products’ quantity .Then we will help you check the

shipping cost .If you have Chinese forwarder ,then free shipping to your Chinese forwarder .

2.Do you ship by plane ?

Yes ,we do .We ship by DHL ,Fedex or UPS ,around 5-7 working days to arrive on your side .For battery ,we will ship by a special liner way ,which

will take longer .

3.Can i have a test video before placing order?

Sure .Video can be sent as well before the shipment .

Thank you so much for your attention .If you're interested in M8100-66560 PHiliphh MP5 Patient Monitor Printer Connector Recorder Board ,feel free to contact us .Thank you .
