Edan SE-601 ECG Machine Silicone Membrane Keypad Maintenance

Edan SE-601 ECG Machine Silicone Keypad Brief Introduction

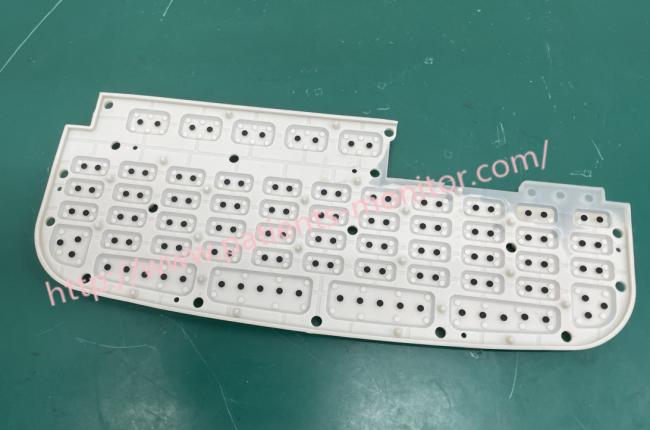

The Edan SE-601 ECG Machine Silicone Keypad is a replacement keypad designed for the Edan SE-601 ECG machine. It is made of high-

quality silicone material, which provides durability and resistance to wear and tear. The keypad features all the necessary buttons and functions

for operating the ECG machine, including power on/off, print, lead selection, and menu navigation. It is designed to be easy to clean and sanitize

for regular usage in medical settings.

Keyboard and Keys

A Function Key

Selecting menu functions on the screen (Pressing F1, F2, F3 or F4 can move the cursor)

B Indicator

1 indicates that the device is powered by the mains supply

2 indicates that the device is powered by the battery

3 indicates the battery charging status

C

Power on / off

D Esc

Canceling operation

E Tab

Pressing Tab can move the cursor forward, and pressing Shift + Tab can move the cursor backward. In the MANU mode, press Tab to switch the

lead group

F

Space: adding a space between typed characters Feed Paper: before printing, if Paper Marker is set to Style1 or Style2, you can press the Space

key to advance the recorder paper to the next black marker; if Paper Marker is set to No, you can press the Space key to advance the paper for

about 2cm. Press the Space key again to stop advancing the paper.

G MODE

Press this key to select a working mode among AUTO, MANUAL and RHYTHM. NOTE: Only in the Work Mode Setup window can the R-R mode

be selected

H RESET

Draw the baseline to zero quickly in the case of baseline drift

I 1mV/COPY

In the AUTO mode, pressing the 1mV/Copy key can print the ECG report which was printed out last time.

J START/STOP

Start/Stop printing reports

K Fn

Inputting special characters. Press Fn + a to type è

L Shift

Inputting a capital letter. Press Shift + p to type a capital P.

M Enter

Confirming operation

N Delete

Deleting characters
