Mindray BeneVision N12 Patient Monitor Display Assemble 115-044502-00 115-044503-00

​​​Mindray BeneVision N12 Patient Monitor Display Assemble 115-044502-00 115-044503-00

► Brief Introduction

The Mindray BeneVision N12 Patient Monitor Display Assembly is a component of the Mindray BeneVision N12 Patient Monitor system. It consists of a high-resolution touchscreen display that provides real-time vital signs monitoring, alarm management, and various monitoring parameters for patients in healthcare settings. The assembly includes the display screen, buttons, and controls necessary for healthcare professionals to access and view patient information on the monitor.

► Features

High-resolution display: It features a high-quality, high-resolution screen that provides clear and sharp images of patient monitoring data.

Touchscreen interface: The display has a user-friendly touchscreen interface, allowing easy and quick navigation through various monitoring functions and settings.

Multi-parameter monitoring: The N12 monitor allows simultaneous monitoring of multiple vital signs and parameters, including ECG, SpO2, NIBP, respiration, temperature, and EtCO2.

Trend monitoring: The monitor allows continuous monitoring and display of trend data, enabling clinicians to analyze changes in patient status over time.

Alarm management: The display assembly includes audible and visual alarms that alert healthcare professionals to abnormal patient conditions or parameter deviations, ensuring timely intervention.

Data storage and review: The N12 monitor allows the storage and review of patient data, facilitating comprehensive assessment and analysis of the patient's condition.

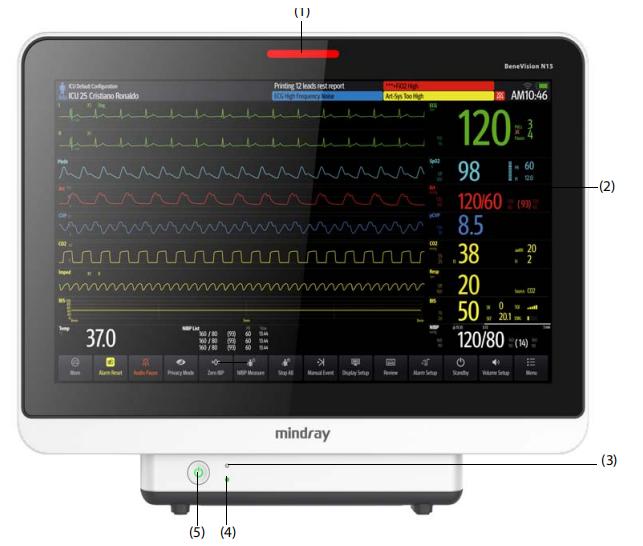

► Front View

(1) Alarm lamp:

When a physiological alarm or technical alarm occurs, this lamp lights and flashes corresponding with the alarm priority:

• High priority alarms: the lamp quickly flashes red.
• Medium priority alarms: the lamp slowly flashes yellow.
• Low priority alarms: the lamp lights in cyan without flashing.

(2) Display

(3) Battery indicator:

• Yellow: the battery is being charged.
• Green: the battery is fully charged.
• Flashing green: the monitor operates on battery power.
• Off: no battery is installed, or the monitor is powered off and no AC power is connected.

(4) AC power indicator

• On: when AC power is connected.
• Off: when AC power is not connected.

(5) Power switch

• Pressing this switch turns on the monitor.
• When the monitor is on, pressing and holding this switch turns off the monitor.

► Specification

f you have any questions about Mindray BeneVision N12 Patient Monitor Display Assemble 115-044502-00 115-044503-00, please feel free to contact us at any time, we are glad to answer them. Thank you for your time!
