► Brief Introduction
The Goldway UT6000A ECG Board is a component of the Goldway UT6000A series electrocardiograph (ECG) machines. It is responsible for acquiring and processing the electrical signals from the electrodes placed on a patient's body to generate an electrocardiogram. The ECG board converts the analog electrical signals into digital data, filters out noise, and performs various calculations to display and interpret the ECG waveform. It is a crucial part of the ECG machine that helps in diagnosing heart conditions and monitoring cardiac activity.
► Performing ECG Test
To set the ECG Simulator:
- Set the HR to 80bpm and ECG gain to 1mV.
To test the ECG:
- Connect one end of the ECG cable to the ECG connector of the monitor and the other end to the simulator.
- Confirm that the patient simulator has been properly connected to the monitor.
- Confirm and make sure the ECG lead II is displayed on the ECG channel, without noise and the heart rate displays 80±2bpm. When the R wave appears you should hear a beep.
- Confirm every ECG lead and make sure there is an ECG waveform and no noise interference.
- Adjusting the ECG gain to 2mV, and confirm the change in the ECG waveform.
- Unplug the RA from the simulator, and confirm that a lead off message pops-up.
- Reconnect RA lead.
- Set the 1mV calibration in the ECG menu, and confirm that a 1mV calibration square wave is overlapped on the ECG waveform.
- The ECG test is complete

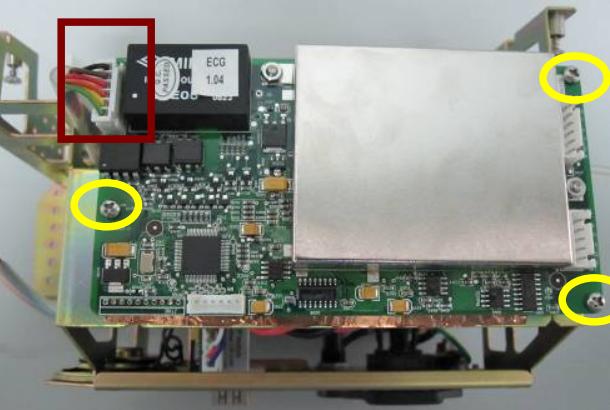

► Removing the ECG Module
- Disassemble the main frame.
- Remove the screws. (Circles)
- Disconnect the ECG connector. (Rectangle)
- Remove the ECG module.
► Specification
| Lead type: | Standard 3-Lead or 5-Lead selectable |
| Lead selection: | I, II, III or I, II, III, aVR, aVL, aVF, V |
| Display channels: | 2 channels, ECG1, ECG2 |
| HR measurement range: | 15 – 300 bpm |
| Accuracy: | ±5 bpm or ±1%, whichever is greater |
| ST measurement range: | ECG 1 only; -0.8mV – +0.8 mV |
| Accuracy: | ±0.02mV or ±5% |
| Sweep speed: | 12.5 mm/s, 25 mm/s, 50 mm/s |
| Gain selection: | x1/4, x1/2, x1, x2, x4, Auto |
| Pacemaker detection: | Yes |
| Protection: | Against electrosurgical interference and defibrillation |
► More Services
In addition to the sales of medical equipment, accessories and maintenance accessories, we also specialize in the maintenance of such machines and modules. As we are proficient in the maintenance of hospital equipment, we are good at renovating damaged machines and accessories. Therefore, if you have such machines or modules for maintenance, you can contact us and send them to us, and we will repair them at the fastest speed. But it is important to note that you must make sure that the items to be serviced are not opened and never serviced. Otherwise, it is unacceptable to us. Finally, please check your items carefully before sending them out.
Looking forward to receiving your early inquiry about PHiliphh Goldway UT6000A Patient Monitor ECG Board C-ECG7131C v1. Thank you for your time!
