P/N 6ACN00 JM712200048 Patient Monitor parts PHiliph Goldway UT6000A VGA Video Interface Board 6ACN00 JM712200048

Goldway UT6000A VGA Video Interface Board

PHiliphh Goldway UT6000A Patient Monitor VGA Video Interface Board 6ACN00 JM712200048

► Brief Description

PHiliphh Goldway UT6000A Patient Monitor VGA Video Interface Board 6ACN00 JM712200048

Goldway UT6000A VGA Video Interface Board - This board is used to display the output signal (screen/video) on this patient monitor. Generally speaking, the monitor will convert the monitored vital signs of the patient into specific data or waveforms, and display them on the screen of the monitor for medical staff to view. Help them make clinical judgments and decisions more quickly and accurately. The VGA Video Interface Board can be connected to external devices and has a D-Sub interface for transmitting analog signals.

► More Details

This PHiliphh Goldway UT6000A Patient Monitor VGA Video Interface Board 6ACN00 JM712200048 is a second-hand part with good performance and condition and is part of the UT6000A monitor. Please check the pictures and other details carefully before placing an order, or contact us to provide your specific needs, and we will find the products you really need based on your requirements.

► Specification

► About The VGA

• The full name of VGA is Video Graphics Array, which is a video graphics array. The VGA interface is a D-type interface with a total of 15 pinholes divided into three rows of five in each row. There are three RGB color component signals and two scan synchronization signal HSYNC and VSYNC pins, as well as two NC (Not Connect) signals, three display data bus and five GND signal pins. The design is exquisite and can play an important role in the device.
• The working principle of the VGA interface is to convert the image (frame) signal stored in digital format in the video memory into an analog high-frequency signal through analog modulation in the RAMDAC, and then output it to the display device for imaging.
• Because all the information processed by the PHiliphh Goldway UT6000A Patient Monitor will eventually be output to the screen, the output interface is the medium between the monitor and the display and is responsible for outputting image signals.

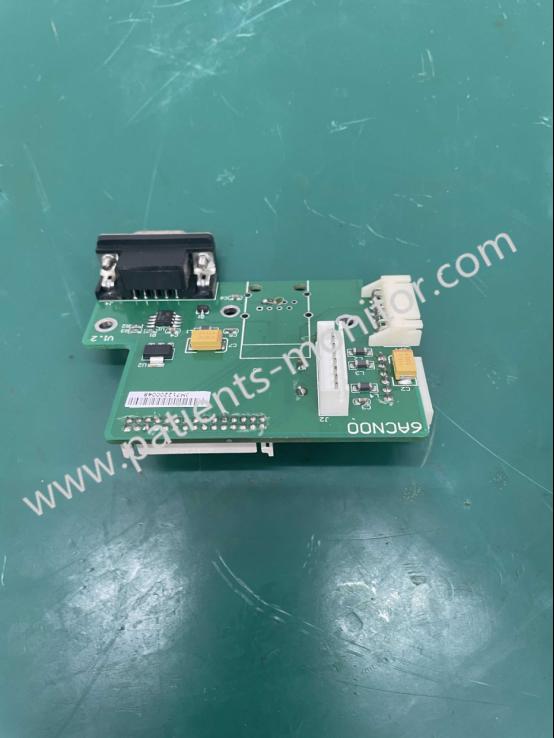

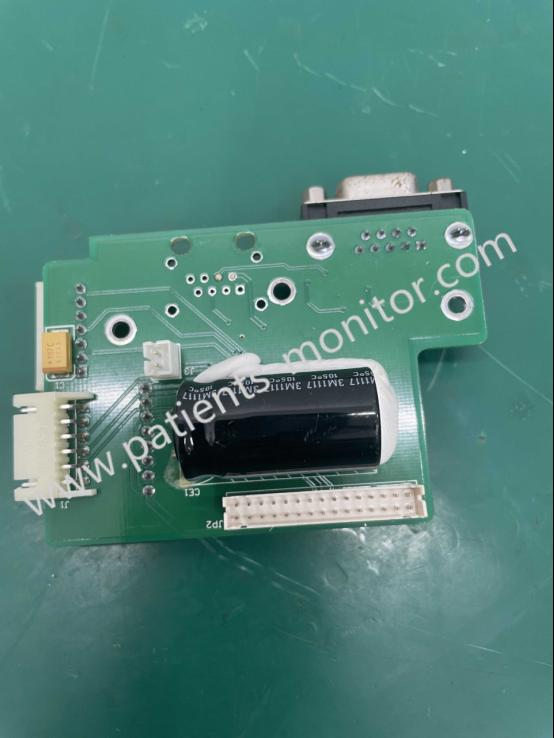

► Detailed Photos

Thanks for your interest in P/N: 6ACN00 JM712200048丨PHiliphh Goldway UT6000A Patient Monitor VGA Video Interface Board 6ACN00 JM712200048 Used with Good Condition​, please feel free to contact me. Thank you for your time and wish you have a happy life.
