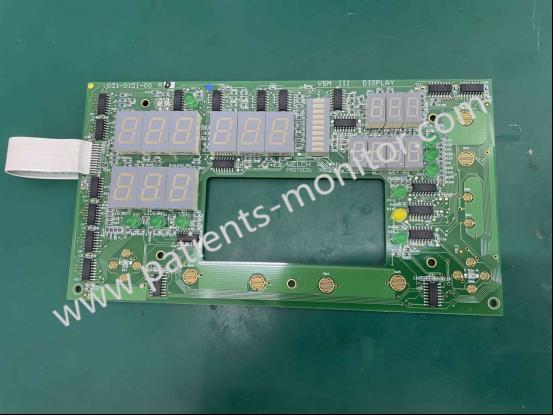

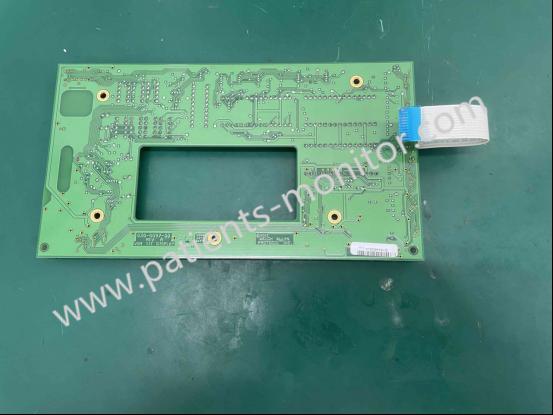

Welch Allyn VSM 300 / Vital Signs Monitor parts 300 Series Display Board LED 031-0151-00 030-0097-00 REV.A

Display stored patient data

1. Press Review patient data to display the recently stored set of patient vital sign data.

• The monitor will interrupt the dynamic display of any current vital sign measurements.

• The message "READING" appears in the message window and contains the data set sequence number and the time the reading was displayed. (During patient data viewing, if MAP is enabled, this display alternates with the MAP display every two seconds.)

2. Press Increase/Decrease or Forward/Back to cycle through the stored measurement data sets. (The display can store 99 measurement cycles.)

3. To return to normal operation, press any button other than Increase/Decrease or Forward/Back. If a function button (e.g. Start/stop NIBP) is pressed, the monitor will return to normal operation and activate the function.

► About More

The Welch Allyn VSM 300 / Vital Signs Monitor 300 Series gives you a complete set of devices that can monitor multiple vital signs of your patients. This includes systolic and diastolic non-invasive blood pressure (NIBP), pulse rate and MAP (mean arterial pressure), with optional configurations also enabling simultaneous temperature and SpO2 monitoring, and most importantly, continuous monitoring of pulse rate.

These monitored vital signs can all be displayed on the monitor's front panel display via the WelchAllyn VSM 300 Display Board LED, and can be printed out via a thermal printer. The monitor's display has a high-definition frame rate. Although it is small in size, it can clearly display various data to the user, making the user's operations and judgments faster and more accurate.
