GE Dash3000 Dash4000 Dash5000 Patient Monitor Dash Module 419723-001 419993-001 Medical Equipment Spare Parts
Dash Module 419723-001 for GE Dash Series Monitor
GE Dash3000 Dash4000 Dash5000 Patient Monitor Dash Module 419723-001 419993-001 Medical Equipment Spare Parts
► Brief Description
Dash Module 419723-001 419993-001 for GE Dash3000 Dash4000 Dash5000 Patient Monitor, without NIBP Pump used with Good Condition
Dash Module 419723-001 for GE Dash Series Monitor - There are many important parts on the Dash Series (Dash3000 Dash4000 Dash5000) patient monitor. This includes the Dash Module component, whose main function is to provide various interfaces, including blood pressure, Spo2, temperature/cardiac output, CO2, NIBP and ECG. The Dash Module 419723-001 for GE Dash Series Monitor is a second-hand but complete professional medical product. You can contact us at any time for replacement or repair due to quality problems within the 90-day warranty period.
► Specification
| Brand | GE |
| Product Category | Monitoring |
| Product Type | Spare Parts |
| Product Name | Dash Module |
| Model Number | 419723-001 E |
| Application | Dash3000 Dash4000 Dash5000 |
| Condition | Used - Good |
| Warranty | 90 Days |
| Material | Plastic, Metal, etc. |
| Transpotation | DHL, FedEx, UPS, By Air, etc. |
| Delivery Date | 3 - 5 Working Days |
► Replace DAS Assembly
1. First, you need to remove the two screws that fix the handle of the patient monitor;
2. Secondly, remove the display assembly from the host;
3.You then need to remove the four screws holding the Data Acquisition System (DAS) assembly in place as shown in the image below:
4. Remove the DAS assembly by first pulling the left side of the DAS Module out 1/4 inch and then sliding the entire assembly out of the patient monitor.
5. Replace DAS components;
6. Reassemble the device by following the disassembly steps in reverse order.
Notice:
1. Do not try to open the DAS component, as it will destroy the isolation barrier, which is likely to cause death or serious injury to the user;
2. The Dash Module 419723-001 for GE Dash Series Monitor is only a replaceable unit and does not require on-site maintenance or adjustment;
3. Remove the DAS assembly carefully to avoid bumping components on the CPU/battery housing assembly.
► More Details
The GE Dash3000 Dash4000 Dash5000 Patient Monitor Dash Module 419723-001 also has a NIBP Pump component on it, which can help the Dash series of patient monitors operate normally. The main function of the NIBP Pump is to make the NBP and NIBP functions on the monitor work properly.

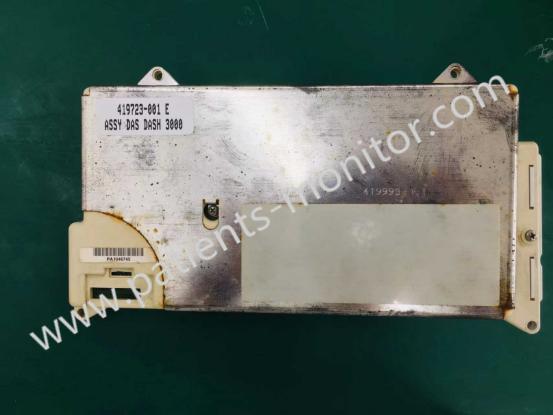

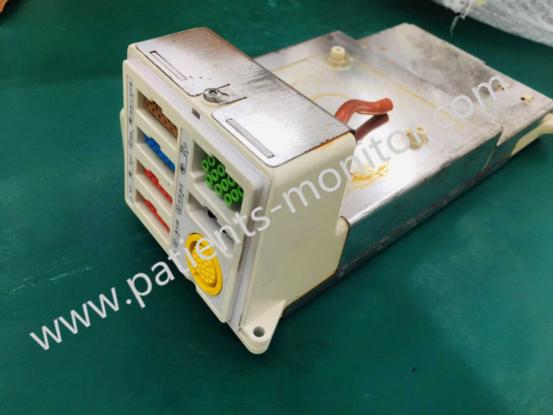

► Detailed Photos
Thanks for your interest in GE Dash3000 Dash4000 Dash5000 Patient Monitor Dash Module 419723-001 419993-001 Medical Equipment Spare Parts, please feel free to contact me. Thank you for your time and wish you have a happy life.
