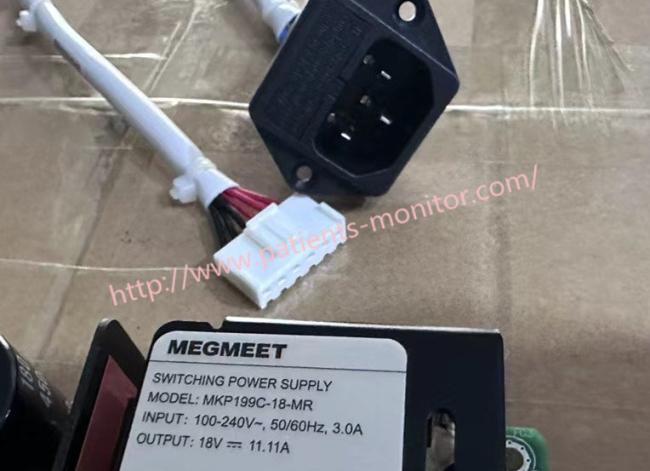

Mindray SV300 SV350 Ventilator AC-DC Power Supply Board New Version MKP199C-18-MR Rev.01

About Mindray SV300 Ventilator Machine

The SV 300 is a state-of-the-art ventilator that is simple to configure, easy to operate and versatile. It is equipped with a wide range of ventilation modes for pediatric and adult patients of all criticality levels in ICU and intermediate care. With its built-in high-performance turbine, the SV 300 offers excellent spontaneous breathing capabilities for both invasive and non-invasive applications and makes it independent of a central air supply.

Power Requirements

Connect to the Power Supply

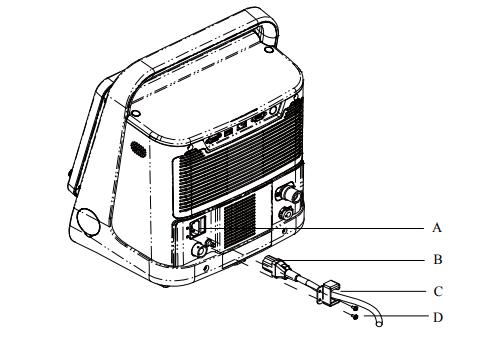

1.Connect to AC Power

A AC power receptacle

B AC power cord

C Power cord retainer

D Screw

• Insert the AC power cord into the AC power receptacle.
• Place the power cord retainer above the power receptacle and align it with the screw holes.
• Tighten the two screws.

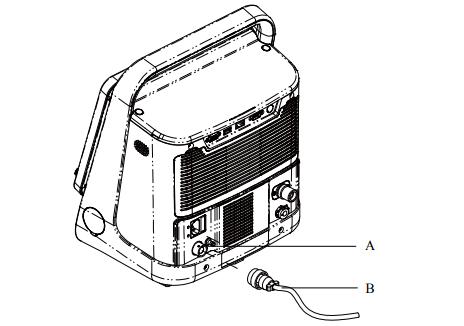

2.Connect to DC Power

• DC power connector
• DC power cord

Insert the DC power cord into the DC power connector and then rotate the DC power cord clockwise. When a click is heard, it indicates that the DC power cord is inserted in place..

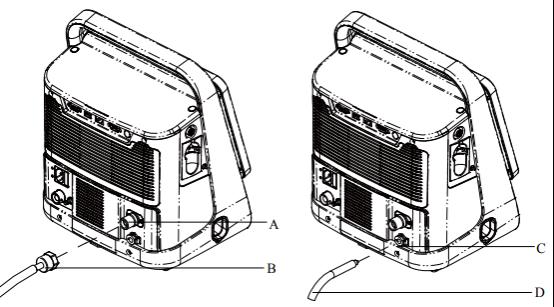

3.Connect to the Gas Supply

• High-pressure O2 supply connector
• High-pressure O2 supply hose and fitting
• Low-pressure O2 supply connector
• Low-pressure O2 supply hose

This ventilator provides two types of gas supply connection: high-pressure O2 and low-pressure O2.

FAQ

1.What is your minimum order quantity?

Our MOQ is one piece. Welcome to take samples to test our quality.

2. When can I receive the order?

Under normal circumstances, we will ship the goods within 3-5 working days after receiving the full payment, and the shipping method is through DHL, Fedex, UPS, or special channels. Under normal circumstances, it takes 5-7 days to reach the customer. For special channels, such as batteries, it usually takes 18-20 days to arrive.

3. Can you ship to my China freight forwarder?

sure. We can ship to your China freight forwarder for free. If not, we can help you ship it

4. Can I watch the test video before placing an order?

certainly. We will give you a test video to confirm before shipping

Thank you so much for your attention .If you're interested in Mindray SV300 SV350 Ventilator AC-DC Power Supply Board New Version MKP199C-18-MR Rev.01,feel free to contact us .Thank you .
