Edan SE-1200 Express ECG/EKG Machine Top And Bottom Panel, Medical Equipment Parts Cover Casing

Edan SE-1200 Express Top Panel and Bottom Panel

Edan SE-1200 Express ECG/EKG Machine Top and Bottom Panel, Medical Equipment Parts Cover Casing

► Brief Description

Cover Casing for Edan SE-1200 Express ECG/EKG Machine

Edan SE-1200 Express Top Panel and Bottom Panel - Together they form the shell of the Edan SE-1200 Express electrocardiograph, which can protect the internal components from being exposed and effectively ensure the performance of the internal components. The housing part is mainly composed of two parts: the top panel and the bottom panel, which are made of simple plastic. Under normal use, it will not be easily scratched or damaged, and has a long service life.

► Specification

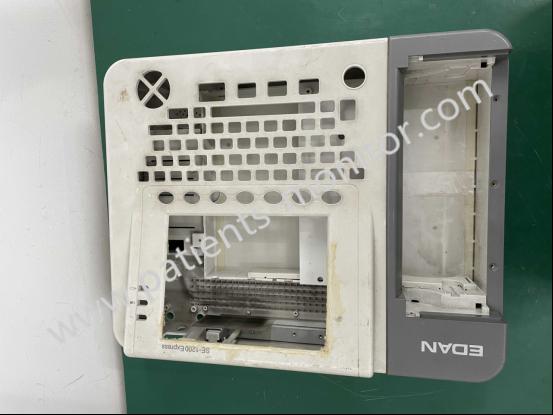

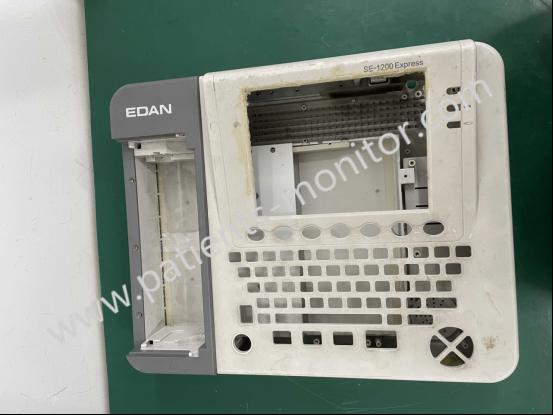

The Edan SE-1200 Express Top Panel and Bottom Panel has an advanced design. A display frame for displaying patient data and operation menus can be installed on the top panel, and a keyboard can also be installed on the top panel to facilitate user operation. On the left side of the top panel is a printer that can print out the patient's electrocardiogram waveform and data, and on the right side are various interfaces. There is a handle above the bottom panel to facilitate moving the Edan SE-1200 Express machine. There is a column at the bottom to support the machine, and an introduction to the device is also on the bottom panel.





► Real Panel

A. Power socket

B. Potential equalizing conductor: Potential equalizing conductor provides the connection between the equipment and the equipotential equalizing busbar of the electrical installation.

C. Handle: the part for people to hold

D. Heat dissipation holes: channels for internal heat dissipation

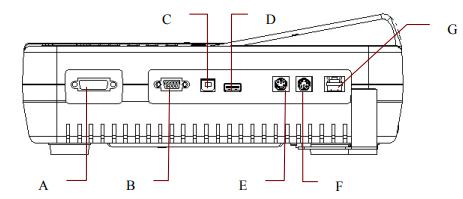

► Real Panel

A. Patient Cable Socket: Connects to patient cable

B. Serial port 1: Connect to PC

C. USB socket 1 (optional): standard USB socket, connect to PC

D. USB socket 2 (optional): Standard USB socket, connect USB flash drive, barcode reader or USB printer recommended by the manufacturer

E. External input/output socket: connect external signal equipment

F. Serial port 2: reserved

G. Network port: standard network port, connect to PC

► Detailed Photos
