▷ GE Carescape V100 Patient Monitor Solenoid Valves Parker PND-05A-05-01 4818

The GE Carescape V100 Patient Monitor is a compact, portable monitor designed for use in medical environments to continuously monitor patient vital signs such as blood pressure, pulse rate, and blood oxygen saturation. The monitor is equipped with solenoid valves that regulate the flow of gases and liquids within the device, allowing for accurate and reliable measurements.

These solenoid valves play a critical role in ensuring proper operation of patient monitors by controlling the rate of fluid infusion, regulating gas flow, and helping to maintain pressure in the system. Their design is robust and reliable, allowing the monitors to provide healthcare professionals with accurate and timely data for monitoring and intervention.

Overall, the GE Carescape V100 patient monitor solenoid valve is an important component that allows the device to continuously and accurately monitor a patient's vital signs, helping to ensure the highest level of patient care and safety in the medical environment.

▷ About solenoid valve

A solenoid valve is an electromechanical device designed to interrupt or redirect fluid flow by opening or closing one or more orifices. Solenoid valves consist of three basic components:

1. An electromagnet consisting of an electromagnet (winding) and a yoke.

2. Pilot valve with movable piston (in some cases the valve opens and closes directly).

3. A valve body having an orifice that is opened or closed by a piston or diaphragm to permit or obstruct fluid flow.

▷ Operating principles

The term magnet refers to the drive and coil, also known as a driver or magnetic actuator. The coil consists of copper wire wrapped around a support coil. When electric current is applied to a coil, magnetic field lines are created that are strongest at the center of the coil. This magnetic flux lifts the moving coil piston until it comes into contact with the pole piece. The valve body has a hole through which fluid flows when the valve is open. The movable piston has an integrated seat that, when the solenoid coil is energized, moves away from the valve opening (direct-controlled) or the diaphragm (pilot-controlled), thus opening the valve. When the spool is deactivated, the return spring returns the piston to its original closed position, stopping fluid flow.

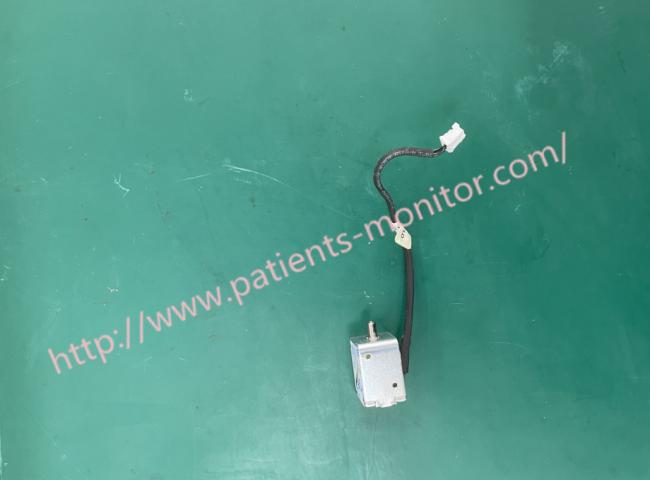

▷ Specification of GE Carescape V100 Patient Monitor Solenoid Valves Parker PND-05A-05-01 4818

Thank you so much for your attention .If you're interested in GE Carescape V100 Patient Monitor Solenoid Valves Parker PND-05A-05-01 4818,feel free to contact us .Thank you.
