Nihon Kohden Cardiolife TEC-7621C Defibrillator Test Load Board UR-0251 6190-022656-S Medical Equipment Sapre Parts
Test Load Board UR-0251
Nihon Kohden Cardiolife TEC-7621C Defibrillator Test Load Board UR-0251 6190-022656-S
► Brief Description
Test Load Board UR-0251 6190-022656-S for Nihon Kohden Cardiolife TEC-7621C Defibrillator
Test Load Board UR-0251 - is a small component on Nihon Kohden Cardiolife TEC-7621C Defibrillator. It is mainly a mechanical and circuit interface that connects test equipment and the device under test. Its main function is to test packaged integrated circuits. For TEC-7621C Defibrillator, a good yield test is very necessary. The Test Load Board can remove malfunctioning ICs to avoid subsequent failures of the equipment due to bad ICs.
► Specification
| Brand | Nihon Kohden |
| Product Category | Defibrillation |
| Product Type | Spare Parts |
| Item Type | Circuit Board |
| Product Name | Test Load Board |
| Part Number | UR-0251 |
| Machine Application | TEC-7621C |
| Condition | Working in Good Condition |
| Warranty | 90 Days |
| Delivery Date | 3 - 5 Working Days |
| Payment Method | Western Union, Bank T/T, Paypal |
| Transpotation | DHL, FedEx, UPS, TNT, EMS, By Air, etc. |
2. Remove the AC/DC unit.
3. Remove the main chassis and motherboard.
4. Remove the high voltage inductor.
5. Remove the high voltage capacitor and relay unit.
6. Remove the three M3 grub screws with spring washers and remove the high-voltage unit bracket.
7. Disconnect the CNA201 cable (to the main board) and speaker cable from the test load board.
8. Remove the two M3 grub screws with washers and spring washers from the test electrode plate.
9. Remove the two M3 grub screws, washers, and spring washers, and then remove the test load plate.
Note: During the disassembly process, the high-voltage capacitor inside the Nihon Kohden Cardiolife TEC-7621C Defibrillator can store lethal energy. Always discharge the capacitor before touching any high-voltage component of the instrument (high-voltage capacitor, high-voltage inductor, relay unit, paddle socket, or paddle).
The Test Load Board UR-0251 for Nihon Kohden Cardiolife TEC-7621C Defibrillator is original used, but in good condition and with complete performance. Engineers will test it again for you before shipment to ensure the availability of the board. All products in our company have a 90-day warranty period. If any quality problems occur during this period that are not caused by other factors, you can contact us at any time for replacement or repair.

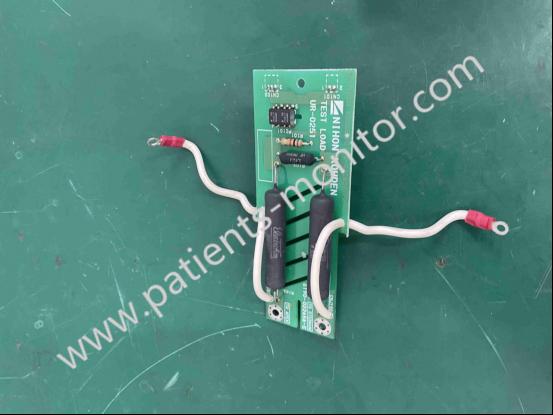

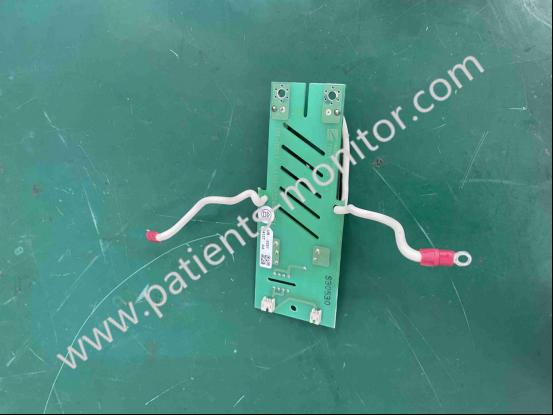

► Detailed Photos
Thanks for your interest in Nihon Kohden Cardiolife TEC-7621C Defibrillator Test Load Board UR-0251 6190-022656-S, please feel free to contact me. Thank you for your time and wish you have a happy life.
