Top Cover Casing & Upper Casing Assy CY-0014 With Main Key Board UR-0249 For Nihon Kohden TEC-7621C Defibrillator
Upper Casing Assy CY-0014 with Main Key Board UR-0249
Top Cover Casing & Upper Casing Assy CY-0014 with Main Key Board UR-0249 for Nihon Kohden Cardiolife TEC-7621C Defibrillator
► Brief Description
Top Cover Casing & Upper Casing Assy CY-0014 with Main Key Board UR-0249 for Nihon Kohden Cardiolife TEC-7621C Defibrillator

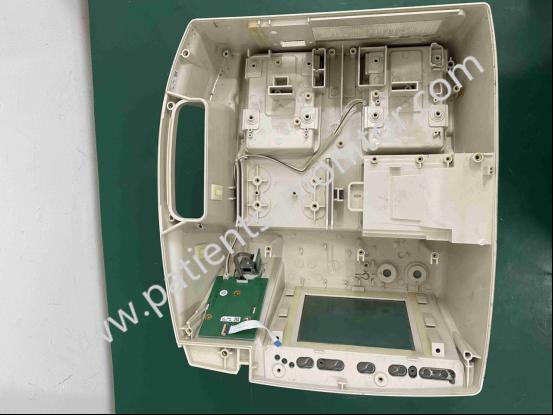

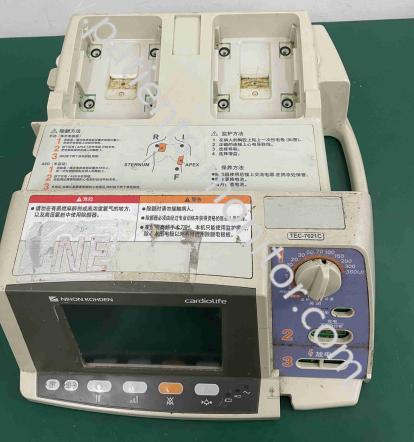

Upper Casing Assy CY-0014 with Main Key Board UR-0249 - It is the upper casing of Nihon Kohden Cardiolife TEC-7621C Defibrillator, which can effectively protect the internal organization and components of the device. And there are many buttons on the panel for users to perform quick operations, which effectively improves work efficiency and buys more time to rescue patients.

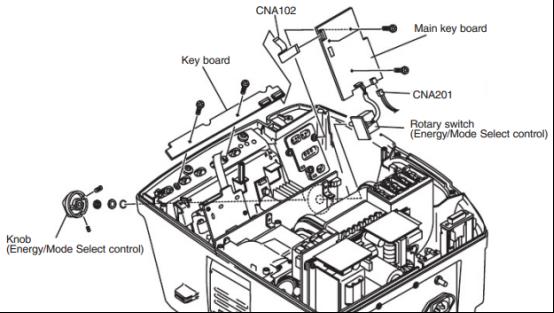

1. Remove the battery pack, memory card and lower case.
2. Remove the main chassis and motherboard.
3. Disconnect the following cables:
• Rotary switch cable.
• CNA201 cable: Connect to test load.
• CNA102 membrane cable: connects the main keyboard and keyboard.
• NOTE: To remove the membrane cable from the membrane cable connector, use a small flat blade driver and your fingers to gently loosen the membrane cable connector lock as shown in the expanded view. Please be careful as membrane cable connectors are easily damaged.
4. Remove the three M3 flat head screws and washers and spring washers, and then remove the main keyboard.
5. Remove the two M3 flat head screws and washers and spring washers, and then remove the keyboard.
• NOTE: Remove the energy/mode select control knob on the front panel.
1) Remove the two hex screws from the energy/mode selection control knob.
2) Remove the knob, nut, washer and O-ring from the rotary switch.

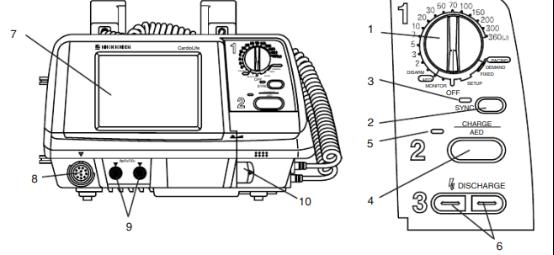

1. Energy/mode selection control
2. Sync button
3. Synchronized lights
4. Charging/AED button
5. Charging button
6. Discharge button
7. Screen
8. ECG input connector
9. SpO2/CO2 connector (on optional QI-762V DSI interface unit)
10. Paddle Connector
11. Record button
12. Recording light
13. Event key
14. Event light
15. ECG lead keys
16. ECG sensitivity key
17. Silent alarm button
18. Alarm setting key
19. AC lamp
20. Battery charging light
21. Battery charging complete indicator light
