Biolight BLT AnyView A5 Patient Monitor High Pressure Board XG-1205A10B V01 Patient Monitor Accessories

Biolight BLT AnyView A5 Patient Monitor High Pressure Board XG-1205A10B V01

Brief Introduction

This Biolight BLT AnyView A5 Patient Monitor High Pressure Board XG-1205A10B V01 is an accessory inside the A5 patient monitor. If the high-voltage board fails, it will cause the monitor's display screen to be black, unable to be used normally, or the brightness will be uneven and the brightness will appear. Dark conditions, so when using monitor equipment, we need to pay attention to avoid collisions with the monitor and humidity in the environment to prevent the high-voltage board from being damaged or short-circuited by impact caused by collisions.

Feature

The high-voltage board is a circuit board in the display. The working principle of the high-voltage board is to convert low DC voltage into high AC voltage to drive the light-emitting diodes of the LCD display. The high-voltage board is usually a small module connected to the LCD panel through an output line. Its safety device prevents power overload. It also has a control board that is used to control the resolution and brightness of the display. The control function in the high-voltage board can be operated by receiving sensor and switch signals. It can control the brightness of the screen to ensure that the screen remains in a comfortable state. Comfortable brightness, when the monitor detects an abnormality, it will also send an alarm prompt through the control panel in the high-voltage board. The high-voltage board is a very important accessory in the patient monitor display. Once it is found to be damaged, it needs to be replaced in time. The reason for the damage of the high-voltage board is that it has been left for a long time. If the high-voltage board has not been used for a long time, it may lead to poor contact of the electrode plate and poor current transmission. Unsmooth conditions, etc. Oxidation, long-term storage and high-temperature environment will cause the metal electrodes of the high-voltage board to be oxidized, resulting in performance degradation, poor current transmission, high-voltage board failure, etc. Damage, impact, bending, scratching, loose cable connections, etc. during use will cause damage to the high voltage board.

Parameters

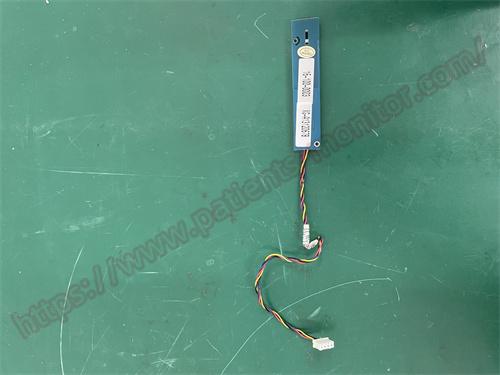

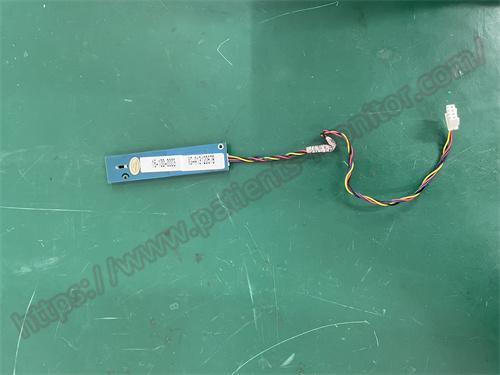

Product Details Picture

If you have any other questions about this product, you can contact us to answer your questions. In addition, if you want to know more about monitors, electrocardiographs, defibrillators, ventilators and accessories for various medical equipment and machines, you can contact us. We are mainly engaged in medical equipment and medical machine accessories.

Thank you for taking the time to pay attention to our Biolight BLT AnyView A5 Patient Monitor High Pressure Board XG-1205A10B V01 product.
