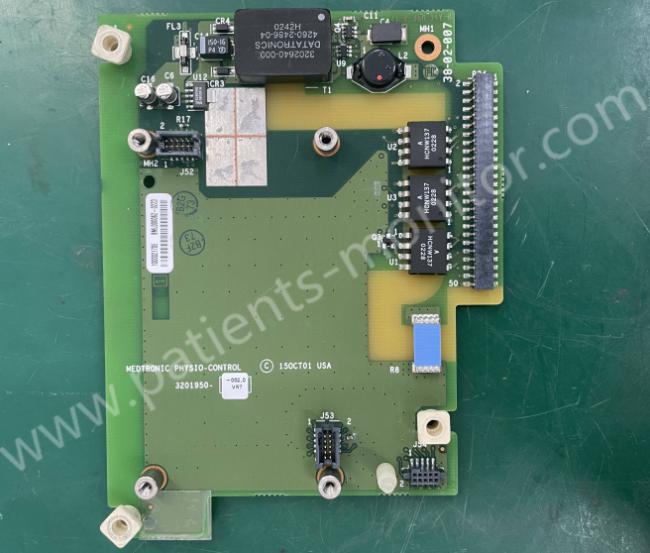

The Med-tronic Lifepak LP20 Defibrillator Spo2 Module OEM Connector Board 3201950-002 3201949-000 is A06 OEM Interface module provides power to and collects SpO2 data from the A10 SpO2 PCB. Its primary function is to provide patient isolation between the SpO2 PCB and the rest of the LIFEPAK 20 defibrillator/monitor design. In addition, it provides physical mounting provisions for the Spo2 Board.

The Basic functions:

• Power Supplies — The A06 OEM Interface PCB uses power from the Patient Parameter PCB to provide the 5 V power for the SpO2 PCB Board.
• UART and ISO Buffers — The UART and ISO buffers provide patient isolation for the serial data signals received from the SpO2 PCB Board and routes them to the Patient Parameter PCB.

► To Install:

1. Ensure that the five threaded standoffs are tight and in good condition.

2. If your defibrillator has Med-tronic Lifepak LP20 Defibrillator Spo2 Module OEM/SpO2 Connector Board, connect the Patient Parameter to the Spo2 Module OEM/SpO2 Connector Board.

3. Install the Patient Parameter (OEM/SpO2) PCB onto the five threaded standoffs. Ensure that the PCB clears the lip in the lower right corner and that the 60-pin connector seats correctly.

4. Install three 4-40 nuts and one 4-40 × .937 screw onto the Patient Parameter PCB.

5. If included, install three 4-40 nuts and one 4-40 × .312 screw onto the OEM/SpO2 PCB assembly.

6. Install the SpO2 PCB.

7. Install the front case.

8. Install the top case.

9. Install the Battery
