► Brief Introduction
The W03 IrDA Assembly is used to provide high-speed wireless communications to data management devices. The OEM W03 IrDA port supports IrDA version 1.1 communications with asynchronous serial rates up to 4 Mbits/second. The IrDA port is mounted directly on the bottom case and the flex circuit connects directly to the A01 System Control PCB at J08. An infrared lens is molded into the device front case directly in front of the IrDA port. The IrDA port and front case lens are aligned so that direct communications can easily be made with a portable data receiver held by an operator or placed on a table.
► To remove the W03 IrDA Assembly:
- If the boardstack is not removed, disconnect the W03 IrDA flex cable from the A01 System PCB at J8 by first removing the screw using a 3/32 allen driver.

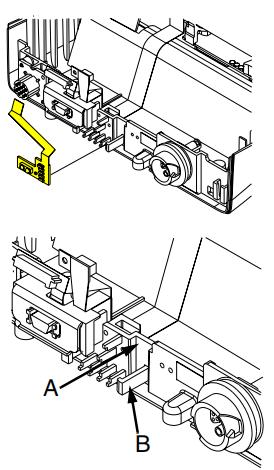

- Insert a slotted screwdriver into the slot between the bottom case cutout (A) and the right snap tab (B).
- Gently apply pressure to the screwdriver. Bend the right IrDA snap tab (B) outward slightly, freeing the right edge of the W03 IrDA Assembly.
- Remove the W03 IrDA Assembly from the bottom case.
- If the boardstack is still installed in the bottom case, disconnect the IrDA connector from PCB.
► To install the W03 IrDA Assembly:
- Position the W03 IrDA Assembly on the bottom case. (The IrDA is located near the center of the front panel on the bottom case.)
- Insert a large slotted screwdriver into the slot between the bottom case cutout (A) and the right snap tab (B).
- Gently apply pressure to the screwdriver. Bend the right IrDA snap tab (B) slightly outward,
- Press the W03 IrDA Assembly down into the snap tabs and release the pressure on the screwdriver. The snap tabs will close around the W03 IrDA Assembly.
- Ensure that the W03 IrDA Assembly is resting centered on the support brackets and snap tabs.
- Connect the W03 IrDA Assembly to the A01 System PCB and fasten with a screw using a 3/32 allen driver, if the boardstack is still installed in the bottom case. Otherwise, Install the boardstack. The IrDA flex cable is connected during the boardstack installation
► Specification
| Energy Select: | 2, 3, 4, 5, 6, 7, 8, 9, 10, 15, 20, 30, 50, 70, 100, 125, 150, 175, 200, 225, 250, 275, 300,325, and 360 joules and user configurable sequence of 100–360, 100–360, 100–360 joules |
| Charge time: | – Charge time to 200J <5 seconds with fully charged battery – Charge time to 360J <7 seconds with fully charged battery – Charge time to 360J <10 seconds while not in low battery operations |
| Synchronized Cardioversion: | – Energy transfer begins within 60 ms of the QRS peak – Energy transfer begins within 25 ms of the External Sync Pulse – External Sync Pulse; 0–5V (TTL Level) Pulse, active High, > 5 ms in duration, no closer than 200 ms apart and no further than 1 second apart |
