Mindray T1 Patient Monitor Display Assembly PN 801-0631-00102-00 PN 1N5670 NO1 27-05-11 Original New
Mindray T1 Patient Monitor Display Assembly PN 801-0631-00102-00 PN 1N5670 NO1 27-05-11 Original New
► Brief Introduction
The Mindray BeneView T1 Patient Monitor Display Assembly to be a specific part or component for the Mindray BeneView T1 Patient Monitor system. The PN "801-0631-00102-00" and "1N5670 NO1 27-05-11" refer to specific identifiers or codes for this assembly, indicating its model, version. It's typical for medical equipment like patient monitors to have such detailed part numbers for identification and tracking purposes.

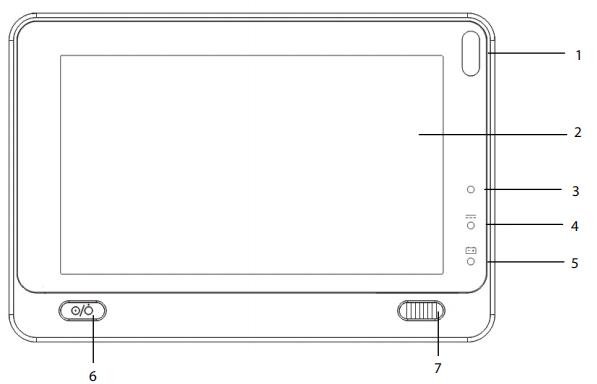

► Overview
1. Alarm lamp
The Alarm lamp flashes in different color and frequency to match the alarm level.
2. Display Screen
3. Ambient light sensor
When [Brightness] is set to [Auto], the system automatically adjusts screen according to the strength of ambient light.
4. External power supply indicator
- On: when external DC power supply is connected.
- Off: when external DC power supply is not connected.
5. Battery indicator
- On: when the battery is installed and the external DC power supply is connected.
- Off: when no battery is installed, or the installed battery is malfunctioning, or no external DC power supply is connected when the patient monitor is power off.
- Flashing: when the patient monitor operates on battery power.
6. Power On/Off Switch
- Pressing this switch turns the patient monitor on.
- When the monitor is on, pressing and holding this switch turns the monitor off.
An indicator is built into this switch. It turns on when the patient monitor is on and turns off when the patient monitor is off.
7. Lock/unlock switch:
Sliding this switch to the right locks/unlocks the touch screen.
► How to use
Patient Monitoring: With the display assembly properly connected, you can start using the patient monitor for monitoring vital signs and patient parameters. This may include monitoring parameters such as ECG, blood pressure, oxygen saturation, temperature, and respiratory rate, among others.
Interpreting Data: The display assembly will show real-time data from the patient monitoring sensors. Learn how to interpret this data accurately, including understanding normal ranges for different parameters and recognizing abnormal readings or alerts.
Shutdown: When finished using the patient monitor, follow the proper shutdown procedure to power off the system safely. This may involve disconnecting the display assembly and turning off the main power switch.
► Specification
| Screen type | Color TFT LCD |
| Screen size (apprx) | 5 inch |
| A/D Resolution | 480×272 pixels |
| Accuracy and tolerance | ±5% |
| Display sensitivity | 1.25 mm/mV (×0.125), 2.5 mm/mV (×0.25), 5 mm/mV (×0.5), 10 mm/mV (×1), 20 mm/mV (×2), 40 mm/mV (×4) |
► Warranty Policy
Under normal circumstances, our new or old items usually have a three-month warranty. In other words, if you find any problems with the product you purchased, you can replace or repair the machine during the warranty period. But please take your time. We hope that you will be satisfied with our products and services and be down-to-earth. Moreover, we are confident that you can be satisfied, because our products are of high quality. Years of sales experience enables us to deal with such problems proficiently. Customer satisfaction is the goal we have been pursuing.
Thank you for your time! If you are interested in Mindray T1 Patient Monitor Display Assembly PN 801-0631-00102-00 PN 1N5670 NO1 27-05-11 Original New, welcome to place your orders. Early order early shipment! If you have any questions, please feel free to contact us at any time, we are glad to answer them.
