Zoll E Series Defibrillator Printer Assembly With Paper / Tray Out Sensor 9301-0385-02 Used-Good
Printer Assembly for Zoll E Series Defibrillator
Zoll E Series Defibrillator Printer Assembly with Paper/Tray out Sensor 9301-0385-02 Used-Good
► Brief Description
Zoll E Series Defibrillator Printer Assembly with Paper/Tray out Sensor 9301-0385-02 Used-Good - The printer equipped with Zoll E Series Defibrillator plays an important role, mainly reflected in the following aspects:
1. On-site records: The defibrillator printer can instantly print out electrocardiogram (ECG) waveforms and related emergency event records.
2. Patient transfer information continuity: When the patient needs to be transferred from the scene to a hospital or other medical institution, the printed report can be transferred with the patient, providing the receiving doctor with an instant and detailed overview of the condition, which helps to quickly take over and continue appropriate treatment.
This Zoll E Series Defibrillator Printer Assembly with Paper/Tray out Sensor 9301-0385-02 is used but fully functional and is an original product. You can contact us for details before placing an order to ensure that it meets your usage requirements.
It has 90 days warranty, if have any problems with this printer, please contact us any time for exchange or repair.
► Specification
| Brand | Zoll |
| Product Category | Defibrillation |
| Product Type | Spare Parts |
| Product Name | Printer Assembly |
| Machine Application | E Series Defibrillator |
| Condition | Used |
| Performance | Good |
| Warranty | 90 Days |
| Delivery Date | 3 - 5 Working Days |
| Package | Standard Export Packing |
| In Stock | Yes |
| Price | Accept Negotiation |
| Payment Method | Western Union, Bank T/T, Paypal |
| Transpotation | DHL, FedEx, UPS, TNT, EMS, By Air, etc. |
► More Details
Printer Disassembly
1. Lift the PCMCIA cover and remove the large screws that secure the bezel to the housing.
2. Open the printer door and lift the bezel straight up.
3. Remove the recorder assembly by loosening the 4 screws (it is not necessary to remove them completely from the printer frame).
4. Squeeze the paper lifter to release the bosses from the grooves in the roller housing.
5. Rotate the roller housing backwards and it will fall off.
6. Gently pry up on the two washers that secure the printer interconnect board and remove them. Remove the circuit board.
7. Slide the pivot pin out of the printer frame.
8. Disconnect the printer cable from the printhead.
9. Remove the printhead by lifting it from the frame.

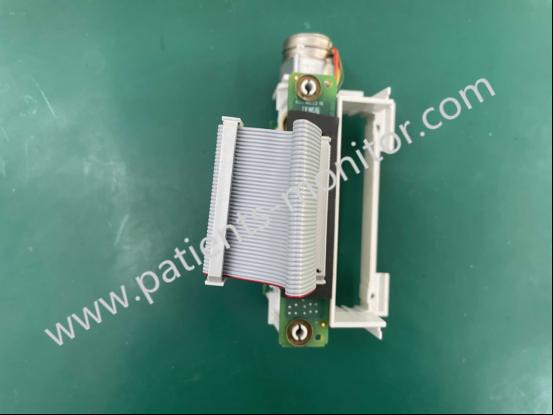

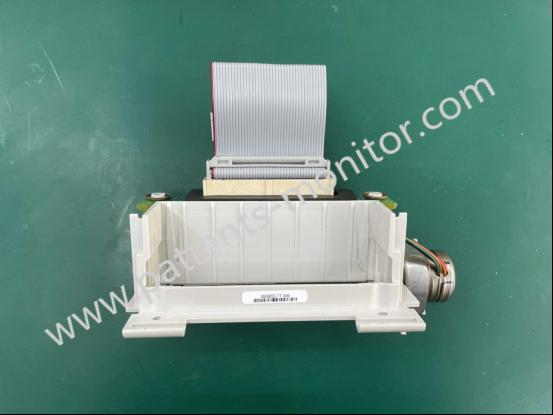

► Detailed Photos
Thanks for your interest in Zoll E Series Defibrillator Printer Assembly with Paper/Tray out Sensor 9301-0385-02 Used-Good, please feel free to contact me. Thank you for your time and wish you have a happy life.
