► Display Menus

To display the menu, press the Menu Select button . Then use the up  or down  navigation key to scroll through the available

options until the option you want is highlighted. To activate the selection, press the Menu Select button. Press Exit to close the menu without

activating a selection.

► Specification of PHiliphh MRX M3535A Defibrillator Display with Key Membrane M3535-60987

► Display Assembly

The Display assembly contains all keypads, the Inverter PCA, the display shield, and the metal frame.

Preparation

• Open and separate the case.
• Position the front case Lay the front case on the work surface with the display facing down and the printer in the lower left corner.
• Remove the measurement module panel.
• Remove the Processor PCA

Removal

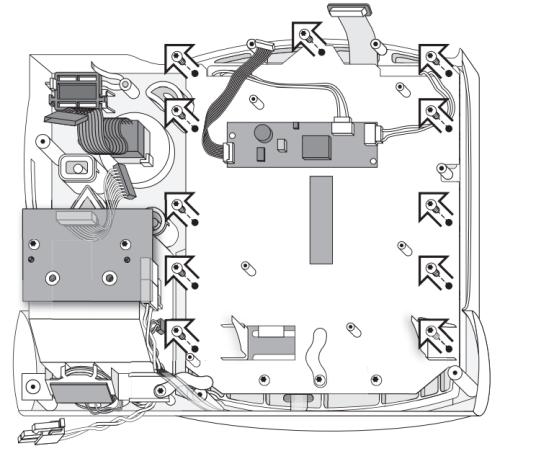

1.Remove the screws. Loosen and remove the 11 T-10 screws as shown below. Do not remove the bottom 3 screws as they connect the shield to the display.

2.Lift the Display assembly.

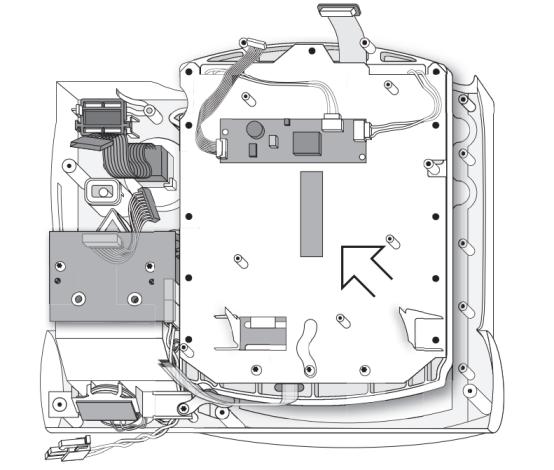

Lift the Display assembly straight up out of the case.

Replacing

1. Remove the rectangular piece of black foam from the metal plate. The black foam protects the cables during shipping.
2. Place the display component. Place the display assembly into the front chassis. Make sure the metal housing fits into the molded posts on the front housing. Make sure no cables are trapped underneath.
3. Replace the screws. Replace and tighten the 11 T-10 screws.
4. Replace the PCA processor
5. Replace the measurement module plate.
6. Close the case.
