Fukuda FC-1760 Defibrillator Paddle Discharge Test Board Assembly PCB-6668

►Quick Detail:

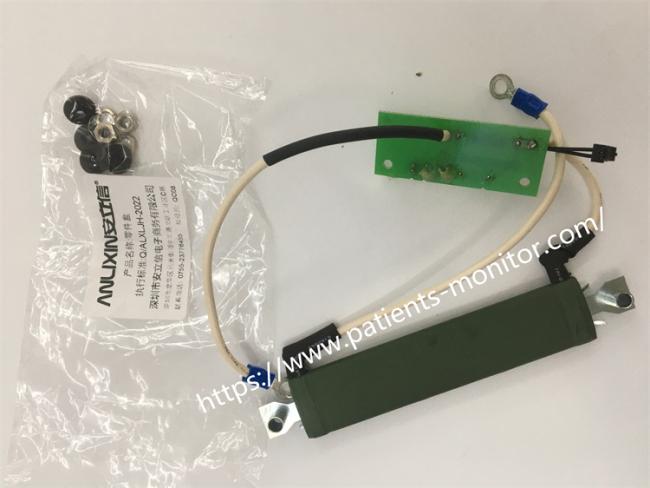

This product is a blade discharge test board component PCB-6668, applied to Fukuda FC-1760 Defibrillator

When there is a problem with the paddle, after the inspection is completed, the test board components can be replaced. We have equipped this product with necessary screws and other small parts .The test board is a vulnerable component and will be repeatedly plugged and unplugged during the testing process. The normal number of plugging and unplugging times is about 10000 times

After replacement, it can ensure that the handle interface components operate well and do not affect the use of medical personnel .

Before inspecting and repairing the integrated test board, it is necessary to familiarize oneself with the functions, internal circuits, main electrical parameters, functions of each pin, as well as the normal voltage and waveform of the pins and the working principle of the circuit composed of peripheral components. If the above conditions are met, analysis and inspection will be much easier.

►Notes:

If the defibrillator needs to be stopped before inserting or removing devices during use, do not insert or remove devices during power on testing, as it may cause excessive instantaneous current, breakdown of devices, and damage to the defibrillator.

Take good measures to protect against static electricity

① Equipment - The defibrillator is running well and there are no other malfunctions

② Operators - maintenance engineers should wear anti-static wristbands and take measures to prevent static electricity from damaging the devices;

③ Test box - The test board comes with a test box, which is wrapped in static paper for electrostatic protection. Static isolation is also provided between the test board and the operator.

►Key features:
