ZOLL M Series Defibrillator Display Assembly Part SA12K783764 With Good Condition
ZOLL M Series Defibrillator Display
ZOLL M Series Defibrillator Display Assembly Part SA12K783764 Used with Good Condition
► Brief Description
ZOLL M Series Defibrillator Display Assembly SA12K783764
ZOLL M Series Defibrillator Display Assembly - It is one of the most important components of the device, with display function, which can clearly present key information, such as the patient's vital signs. At the same time, the display also serves as an operating instruction and feedback, which can guide medical staff to perform the correct operation and feedback on the display.
This ZOLL M Series Defibrillator Display Assembly is second-hand, but it has been fully tested to ensure that it is fully functional. It can be tested before shipment, and test videos and pictures can be provided for your confirmation. Feel free to contact us for detailed information about this screen.
► Display
| Screen Type | High resolution, electoluminescent or liquid crystal display (LCD) |
| Screen Size | 5.66 inches (14.4 cm) diagonally (EL Display) |
| Sweep Speed | 25 mm/sec, 50 mm/sec (configuarable for 12-lead ECG recording) |
| Viewing Time | 4 seconds |
| Messages |
Erasing Report, Insert Card, Card Full, Replace Battery, Low Battery, Perform CPR, ECG Too Large, Noisy ECG, Retry Analysis, Check Patient, Analysis Halted, Press Analyze, No Shock Adv., Check Pulse, Shock Advised, Press Charge, Select Pads, Select ECG Leads, Select Defib Mode, VF Alarms Off, Disable Sync, Analysis Restarted, Check Pads, Poor Pad Contact, Defib Pad Short, Paddle Fault, ECG Lead Off, Use Paddle DIschg, Open Air Discharge, Cannot Charge, Release Shock, 50 J Max, Press Shock, Test OK, Test Fail, Pacer Disabled, Defib Disabled, Set Pace mA, Set Pace Rate, Check Recorder, Analyzing ECG. |

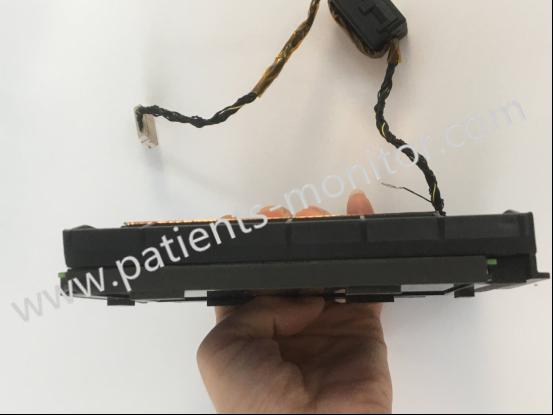

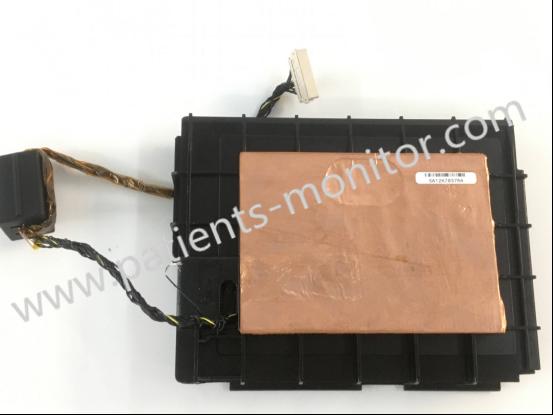

► Detailed Photos
► Feature
ZOLL M Series Defibrillator Display Assembly SA12K783764 has the following important features:
1. Able to clearly display key information: The high-resolution screen design can monitor patient information, allowing medical staff to observe the patient's status in a timely manner and take timely response measures.
2. Provide guidance: It can display the operation interface to guide medical staff to perform correct operations, and feedback the operation on the Zoll M device through the display.
3. Sturdy and durable: Made of sturdy materials, it has good anti-fall, shock and waterproof performance.
► Removing
Step 1: Remove the grounding tape from the outer display shield.
Step 2: Remove the video display assembly by rotating the display upward from the lower portion of the display panel assembly.
Step 3: Remove the video display assembly.
To reinstall the display, reverse steps 1 through 3.
Thanks for your interest in ZOLL M Series Defibrillator Display Assembly Part SA12K783764 Used with Good Condition, please feel free to contact me. Thank you for your time and wish you have a happy life.
