Edan F6 Fetal Maternal Monitor Bottom Panel Cover Used Medical Equipment Spare Parts
Bottom Panel for Edan F6 Fetal Monitor
Edan F6 Fetal & Maternal Monitor Bottom Panel Cover used Medical Equipment Spare Parts
► Brief Description
Bottom Panel for Edan F6 Fetal Monitor - It is one of the important parts of Edan F6 Fetal & Maternal Monitor and is installed at the bottom of the device. It contains a battery compartment, which can be used to maintain the normal operation of the device. The main function is to protect the internal circuits and components of the device from external factors and prevent them from being displaced or falling off.
It's used with good condition products, have 90 days warranty. There are no obvious scratches on the appearance and it is original. We can provide you with detailed pictures for your confirmation before shipment. If have any problems and interested in our products, please contact us freely.

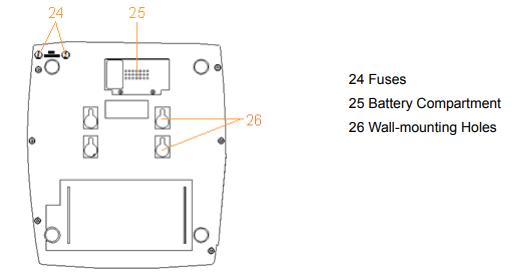

► Major Parts
There are some important parts on the Edan F6 Fetal & Maternal Monitor Bottom Panel.
-
Fuse: It is connected to the circuit to protect the circuit. When the current in the circuit of the device is too large, the metal wire or sheet in it will generate high temperature and melt, open the circuit to interrupt the current and protect the circuit from damage. There are two fuses:
Size: Ф5mm*20mm; Model: T2AH250V.
-
Battery compartment: Edan F6 Fetal & Maternal Monitor can work by connecting to AC power or by installing batteries. In special circumstances such as no external power supply, the battery can maintain the normal operation of the device.
- Wall mounting hole: Edan F6 Fetal & Maternal Monitor can be hung on the bedside or on a bracket for mobile monitoring through these wall mounting holes to save space or facilitate uninterrupted observation of patients during transportation.
► More Details
To replace the fuse:
1. Fold the LCD Display completely flat.
2. Carefully turn the monitor upside down on a flat surface covered with a cloth or other protective pad.
3. Use a flat-head screwdriver to push the fuse in about 1 mm and then turn it counterclockwise to unscrew it.
4. Remove the old fuse and replace it with a new fuse from the manufacturer or a new fuse of the same specification.
5. Push the new fuse into the socket about 1 mm and then turn it back clockwise.
► Physical Specifications
| Dimensions and Weight | Size (depth x width x height): | 347mm × 330mm × 126mm |
| Weight: | Approx. 5.3 kg | |
| Power Supply | Operating Voltage: | 100V-240V~ |
| Operating Frequency: | 50Hz/60Hz | |
| Input Power : | 110VA | |
| Battery : | 14.8V/4400mAh |
Thanks for your interest in Edan F6 Fetal & Maternal Monitor Bottom Panel Cover used Medical Equipment Spare Parts, please feel free to contact me. Thank you for your time and wish you have a happy life.
