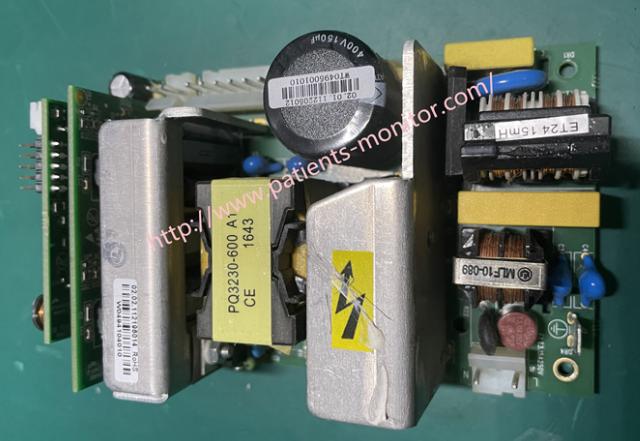

Edan F6 Fetal Monitor Power Supply Board 21.53 PQ3230-600 A1 New Original Medical Equipment

Edan F6 Fetal Monitor Power Supply Board 21.53 PQ3230-600 A1 New Original Medical Equipment

►Brief Description

The Edan F6 fetal monitor power strip converts the power from the wall outlet into a form that the monitor can use. It is usually located inside the monitor and is responsible for providing the voltage and current required to power the device.

It is a component of the Edan F6 fetal monitoring system. This board is responsible for providing the monitor with the energy required to ensure the monitor's normal operation.

A power strip usually receives power from an external source such as a wall outlet or a battery. This energy is converted and distributed to the various components of the patient monitor, including the display, processor, memory, and other internal circuitry.

Power strips are designed to accept a variety of input voltages and currents to ensure compatibility with a variety of power sources. They also have various protection mechanisms such as overcurrent protection and overvoltage protection to protect against possible electrical faults and surges.

In addition to the power strip, it may include features such as LED lights that indicate the power status and connectors or terminals for connecting to other power components of the monitoring system.

►Connection card (DC/DC, power management circuit)

Breakout board for sending signals from external connectors and DC/DC power management circuits

• DC-DC: Output 12V (10.8-12.6V), 5V +/- 5%.
• DC/DC conversion circuit
• Power management and ports
• On/Off control: no delay on power on, no delay on power off
• Charge and discharge management of single-cell lithium batteries
• Battery type detection (current large capacity lithium battery and small capacity lithium battery)
•  On-site battery test
• Battery voltage (capacity) detection.
• Track on AC or battery power
• Temperature control
• Communicate with the motherboard
• External port signal transmission (RJ45, USB, multi-function port, VGA)

►Specifications

►Packing Details

We will pack the goods carefully and with all our heart so that they can be delivered to you in good condition. Please rest assured that we will pack the goods using high-quality packaging materials to avoid scratches and shocks during transportation.
Usually, there is no problem with the goods you receive. However, if you find any problems during the transportation of the goods, please contact us as soon as possible. However, if the problem is not caused by transportation, it will be a different problem, so please be especially careful. In other words, after careful inspection by our engineers and careful packaging, the goods will finally be delivered to you unharmed.

Thank you so much for your attention .If you're interested in Edan F6 Fetal Monitor Power Supply Board 21.53 PQ3230-600 A1 New Original Medical Equipment​ ,feel free to contact us .Thank you .
