PHiliph Goldway CTG7 Fetal / Maternal Monitor Bottom Cover Case Casing Maintenance Spare Parts

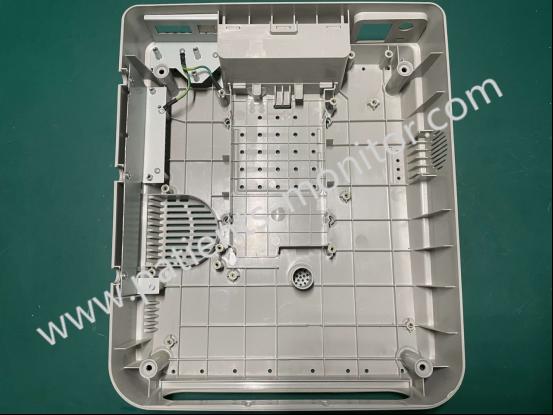

Bottom Case for Goldway CTG7 Fetal Monitor
PHiliphh Goldway CTG7 Fetal/Maternal Monitor Bottom Cover Case Casing maintenance Spare Parts
► Brief Description
PHiliphh Goldway CTG7 Fetal/Maternal Monitor Bottom Cover Case - Made of high-quality engineering plastics, it is sturdy and durable, can withstand certain external impacts and wear and tear in daily use, and is not easy to be damaged. It has good chemical stability and is not easily corroded by common chemical substances in hospital environments, such as disinfectants.
And it has some interfaces or sockets integrated at the bottom for connecting power adapters, external data transmission cables or other accessories, such as USB interfaces, power interfaces, etc., to facilitate the charging and data communication of the device.
In terms of design, the appearance matches the overall design style of the monitor, and the colors are coordinated to maintain the beauty and professionalism of the device. The surface is smooth, easy to clean and disinfect, meets the hygiene requirements of the medical environment, and can effectively prevent the breeding and spread of bacteria and viruses.
► Features
The design of PHiliphh Goldway CTG7 Fetal/Maternal Monitor Bottom Cover Case is also very clever. The bottom shell is designed to be a flat structure, which helps the monitor to remain stable when placed on a desktop or other flat surface, reducing the risk of the device falling due to accidental collision or shaking. There are heat dissipation holes or ventilation channels reserved on the shell to ensure that the electronic components inside the device can effectively dissipate heat during long-term operation to prevent overheating and damage. The bottom is equipped with non-slip feet to increase the friction with the placement surface, further improve the stability of the device, and also prevent the device from making noise or displacement due to vibration during use.
► Detailed Photos
► Removing

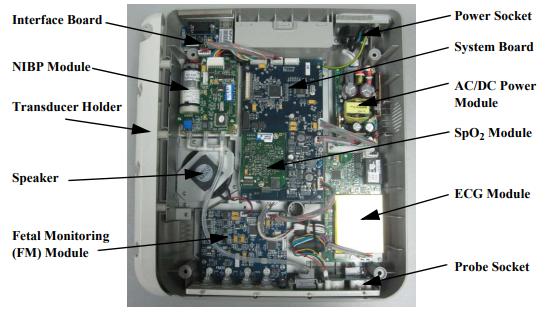

Removing the Bottom Housing Assembly
To remove the bottom housing assembly, you must remove the following components:
• Sensor bracket
• SpO2 module
• Fetal monitoring (FM) module
• Socket panel
• System board
• NIBP module
• Speaker
• ECG module
• AC/DC power supply module
• Power socket
• Interface board
• Battery charging board
► More Details

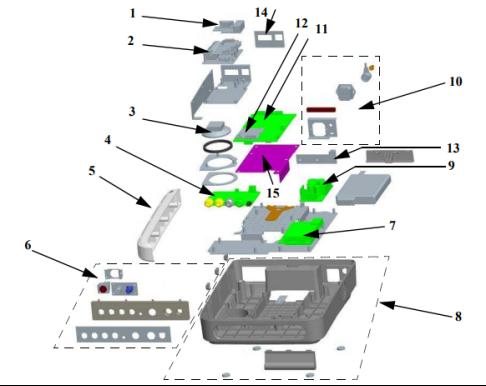

CTG7 Bottom Housing Assembly and Parts
| 1. | PCA 4ACN00 V1.4 Pb Free (Interface board) | 453564304331 |
| PCA Interface Board CN00 V1.1 (Interface board) | 453564304521 | |
| 2. | PCA NIBP Module Assembly C-NIBP312B (NIBP Module) | 453564288791 |
| 3. | 3T ASSY Speaker (Alarm speaker) | 453564390361 |
| 4. | CTG7 PCA FM00 (Fetal monitoring module) | 453564280241 |
| 5. | 3T PLAST Fixing Inductor (Transducer holder) | N/A |
| 6. | 3T Function INTFC ASSY, SpO2/NIBP (Probe socket, SpO2/NIBP) | 453564304371 |
| 3T Function INTFC ASSY, SpO2/NIBP/ECG (Probe socket, SpO2/NIBP/ECG) | 453564304381 | |
| 7. | PCA EECG Module C-ECG7131C V1.2 (ECG module) | 453564304531 |
| 8. | 3T ASSY Rear Frame | 453564390341 |
| 9. | ASSY-PWR SMPS LPS54-M (AC/DC power module) | 453564288691 |
| 10. | 3T ASSY Power Socket (Power socket) | 453564390371 |
| 11. | 3T PCA System Board SYS00 V1.1 (System board) | 453564304501 |
| 12. | PCA SPO2 GISP-N C-ISPO2011B Pb Free (SpO2 module) | 453564290991 |
| 13. | PCA BAT Adapte Board CHG00 V1.3 Pb Free (Battery charger board) | 453564304511 |
| 14. | 3T PLAST Interface Film 2 Hole (Interface film) | 453564293981 |
| 3T PLAST Interface Panel Film (Interface film, single hole) | 453564278551 | |
| 15. | 3T INSUL System Board Film PVC (System board insulation plastic sheet) | 453564278601 |
