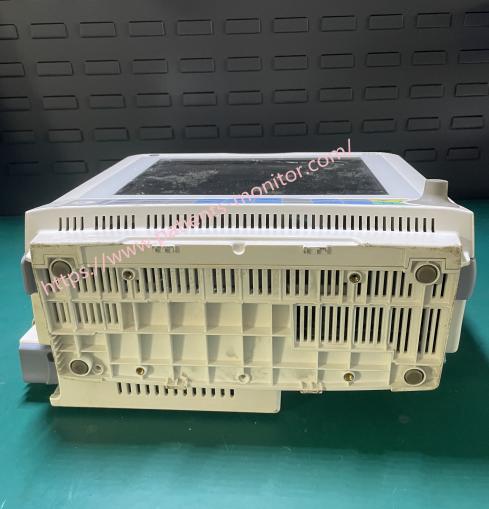

Used GE B20 Patient Monitor Hospital Medical Device For Repair
Used GE B20 Patient Monitor Hospital Repair
Indication use for GE B20 Patient Monitor
The GE B20 Patient Monitor is a portable, multi-parameter device designed to monitor and record multiple physiological parameters and alarms in adult, pediatric, and neonatal patients in the hospital environment and during hospital transport.
The GE B20 Patient Monitor is intended for use under the direct supervision of a qualified healthcare professional.
The GE B20 Patient Monitor is not intended for use during MRI.
The GE B20 Patient Monitor can be used as a standalone monitor or connected to other devices via a network. ), blood pressure, end-tidal CO2, heart rate/pulse, respiratory rate, electrocardiogram (including arrhythmia and ST segment analysis), body temperature. Continuous temperature monitoring of esophageal/nasopharyngeal/tympanic/rectal/bladder/axillary/skin/airway/lumen/myocardial/central/surface using a reusable or disposable electronic thermometer, functional oxygen saturation (SpO2), pulse rate (including during ambulatory or low perfusion state of clinical patients), and entropy.
Specification of GE B20 Patient Monitor
| Product Name | GE B20 Patient Monito |
| Brand | GE |
| Model Number | B20 |
|
Size
|
|
| Without extension module | 312±5 mm (H) * 312±5 mm (W) * 158±5 mm (D) |
| With extension module | 312±5 mm (H) * 352±5 mm (W) * 178±5 mm (D) |
| Weight with extension module | ≤6 kg |
| Monitor Environment | |
| Operating temperature |
Normal operation: 5 to 40°C (41 to 104°F) Charging batteries: 5 to 35°C (41 to 95°F)
|
| Storage and transport temperature |
-20 to 60°C (-4 to 140°F)
|
| Operating humidity |
20 to 90% noncondensing
|
| Recorder |
|
| Recorder type |
Thermal array
|
| Resolution |
Vertical 8 dots/mm (200 dots/inch) in non-waveform mode Horizontal 24 dots/mm (600 dots/inch) mimimum in waveform mode
|
| Paper width |
50 mm, printing width 48 mm
|
| Print speed |
1, 6.25, 12.5, 25 mm/s
|
|
Electrical
|
|
| AC input voltage | 100 to 240 V ±10% |
| AC input frequency | 50/60 Hz |
| AC input power | ≤150 VA |
| Power supply | Internal battery or AC power |
| Battery | Exchangeable lithium-ion, 2 pcs max. |
| Battery life | 300 cycles minimum to 50% capacity |
| Battery information | model SM 201-6; 11.1 V, 3.52 Ah |
| Charging time | 2 hours to 90% per battery pack |
| Operation time | Up to 4.5 hours |
Thank you for your attention .If you're interested in Used GE B20 Patient Monitor Hospital Medical Device For Repair ,feel free to contact us .Thank you .
