Edan SE-100 ECG EKG Machine Ground Cable Connection 01.13.19976-13 Medical Equipment Parts
Ground Cable Connector for Edan SE-100
Edan SE-100 ECG EKG Machine Ground Cable Connection 01.13.19976-13 Medical Equipment Parts
► Brief Description
Edan SE-100 ECG EKG Machine Ground Cable Connection 01.13.19976-13 - It is a very important part of the Edan SE-100 and is related to the safety of the equipment and medical staff.
Functionally, the ground cable acts as a safety conduit. If any electrical fault occurs inside the machine, such as a short circuit or power surge, it provides a low resistance path for the excess current to flow safely to ground. This protects both the patient being monitored and the medical staff operating the equipment. Without a proper ground connection, there is a significant risk of electric shock, which can have serious consequences ranging from minor discomfort to life-threatening situations, especially considering the vulnerability of patients who may already have underlying heart conditions.
► Specification
| Brand | Edan |
| Product Category | ECG |
| Product Type | Spare Parts |
| Product Name | Ground Cable Connection |
| PN | 01.13.19976-13 |
| Machine Application | SE-100 |
| Condition | Used with Good Condition |
| Warranty | 90 Days |
| Delivery Date | 3 - 5 Working Days |
| Application | Medical Equipment,Hospital Device |
| Resolution | None |
| Product Edges | Guaranteed quality |
| Inventory Situation | Adequate inventory |
| Power Source | Electricity |
| Transportation | DHL, FedEx, UPS, TNT, EMS, By Air, etc. |
| Payment Method | Western Union, Bank T/T, Paypal |
► Function
- The installation of the SE-100 EKG ground wire follows a specific procedure. Typically, it is connected to a reliable ground point in the healthcare facility, usually a ground bus or ground rod that is part of the building's electrical grounding system. The wire itself is made of conductive material and has sufficient thickness to handle potential fault currents. It is carefully routed from the EKG machine's ground terminal, which is usually clearly marked on the equipment housing for easy identification and connection, ensuring that it will not be pinched, frayed, or otherwise damaged during installation.
- Accurate ECG readings also rely on proper grounding. Electrical interference can corrupt the delicate ECG signals that the machine picks up from the patient's body. A ground wire helps create a stable reference point for the circuitry within the machine, minimizing the effects of external electromagnetic fields generated by other nearby electrical devices, fluorescent lights, and even radio frequency sources. This reduction in interference ensures that the ECG waveform displayed on the machine's screen truly reflects the heart's electrical activity, allowing healthcare providers to make precise diagnoses.

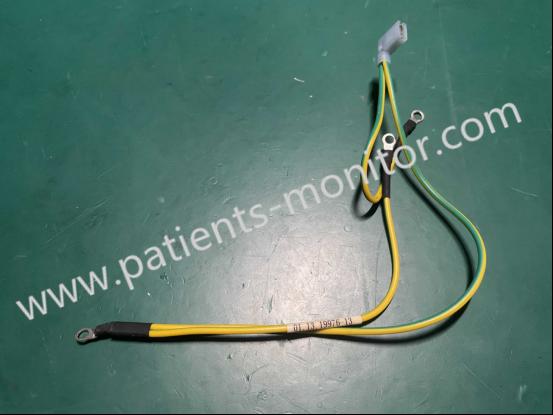

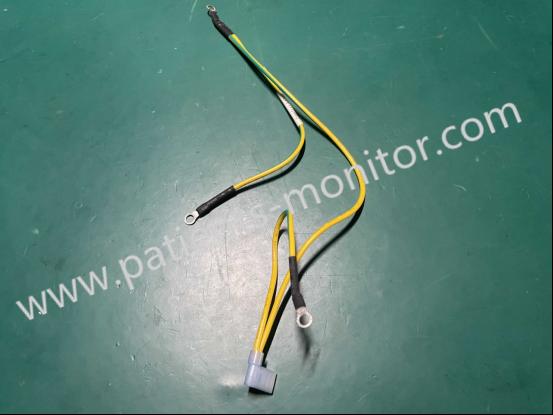

► Detailed Photos
Thanks for your interest in Edan SE-100 ECG EKG Machine Ground Cable Connection 01.13.19976-13 Medical Equipment Parts, please feel free to contact me. Thank you for your time and wish you have a happy life.
