Used-good Mindray T1 Display Board MNSSD45N

► Brief Introduction

The Display Board MNSSD45N of Mindray BeneView T1 is the core component of the display module. It is responsible for converting the processed data of the monitor into visual displays, including waveforms, parameters, trend charts and alarm information. The display board is designed for medical environments to ensure that the equipment can operate stably for a long time. It is directly related to the display effect and user experience of the equipment. When using it, ensure that the power supply is stable, the environment is suitable, and the equipment is checked regularly. When replacing and installing, follow the standard operating procedures and seek professional technical support when necessary to ensure the normal operation of the equipment and extend its service life.

► Purpose

• Display driver: responsible for driving the display screen to display the patient's vital signs data, including heart rate, blood pressure, blood oxygen saturation, body temperature and respiratory rate.
• Image processing: processing the digital signal sent by the monitor motherboard to generate high-quality waveform and parameter display.
• Interface management: providing an interface to connect the display screen to the monitor motherboard, supporting resolution adjustment and brightness control.
• Touch screen support (if any): in the touch screen version, it is also responsible for receiving and transmitting touch signals.

► Precautions

• Regularly check the display screen for abnormalities (such as screen jitter, color cast, or screen freeze) so that display panel problems can be promptly corrected.
• Ensure stable power supply to the equipment to avoid damage to the display panel caused by voltage fluctuations.
• When cleaning the display, prevent liquid from seeping into the internal display panel.
• Wear anti-static gloves or a wrist strap when replacing the display board to prevent static electricity from damaging the display board and other electronic components.

► Parameters

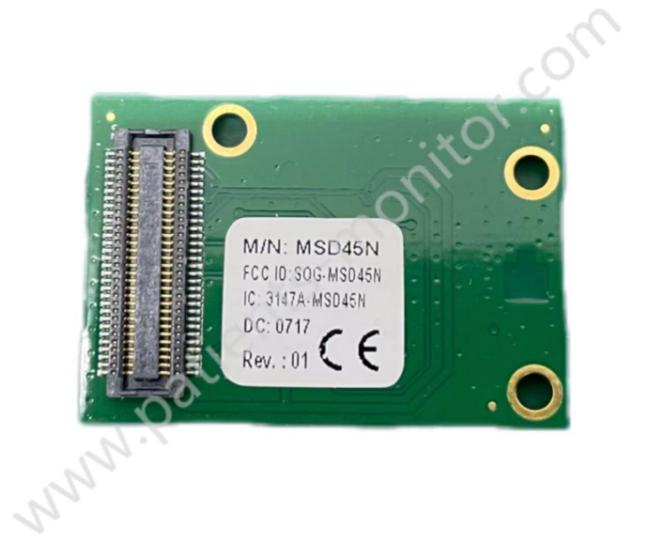

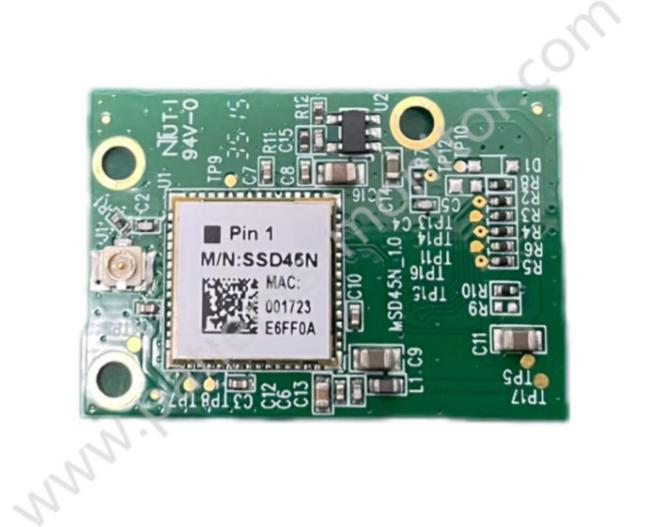

► Product Picture

If you have any question about our Mindray BeneView T1 Patient Monitor Display Board MNSSD45N, please feel free to contact us.

In addition, our company is mainly engaged in the sale, exchange and repair of medical equipment and medical equipment accessories. If you are also interested in other medical equipment and accessories, please feel free to contact us.

► After-sales issues

Our warranty time is 90 days after delivery. Before packing, we will check the goods model carefully, and if the product is in used condition, there are professional engineers who will test the functions of it. Only the test is qualified then we will pack carefully to ensure that you can receive satisfactory and workable goods. And please check the goods asap after you receiving them. If you have any questions, please feel free to contact us.
