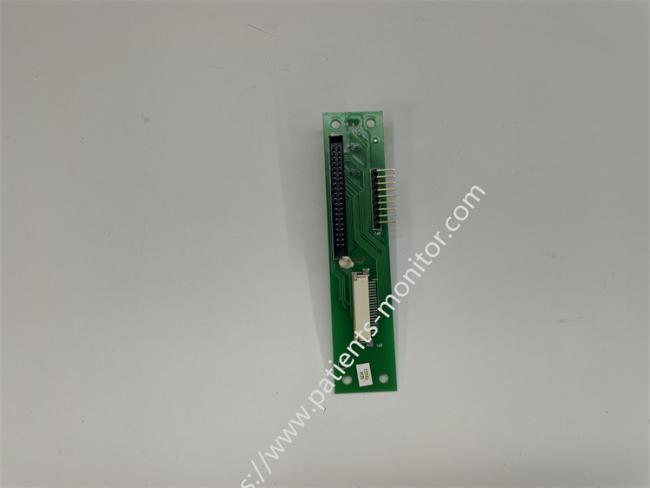

EDAN SE-100 ECG upper and lower cover connection plate 02.02

used good condition

►Quick Detail:

This product is EDAN SE-100 ECG upper and lower cover connection plate 02.02
used good condition, It mainly solves the problem of the upper and lower interfaces of the electrocardiogram machine very well. Require low noise, high input impedance, high anti-interference ability, etc.
At present, electrocardiogram machines all use field-effect transistor constant current source differential amplifiers with high input resistance, low noise, and high common mode rejection ratio. Some electrocardiographs also add a buffer isolation stage in order to improve input impedance and better isolation. It is usually an emitter output device with high input impedance and low output impedance.

This circuit board has calibration circuits and calibration signals. To calibrate the amplitude of electrocardiogram waves and divide the voltage of the internal stabilizing power supply.

►The function of the connecting plate:

The function of the connecting plate:

The connection function between the upper and lower parts of the EDAN SE-100 ECG machine is to centrally manage electronic devices. By using a connection board, multiple electronic devices can be connected to the same place, making it easier to manage and control the normal operation of the device. It can also provide power protection, and the connection board has overload protection function. When the current exceeds the rated value, they will automatically cut off the power to avoid equipment damage or fire. This provides good protection for machines used in hospitals.

When purchasing the connection board for the SE-100 ECG machine, please select the model and brand clearly when purchasing. If you have any questions, feel free to communicate with us.

►Key features:

► Company situation:

The company has been professionally operating various brands of original medical monitoring instruments since 2015. The company has many professional senior engineers and has sufficient ability to undertake various medical equipment maintenance work. Covering motherboards, sensors, probes, modules, connectors, shells, etc. for various medical monitoring equipment.

►About delivery:

We default to express delivery by DHL,Fedex, We will contact you as soon as possible when sending express delivery. If you have any questions after receiving the express delivery, please feel free to contact us at any time.
